DG's Baja chassis skid plate for the 400EX
(written by Carr400EX)

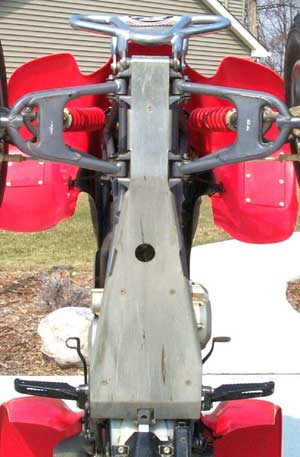

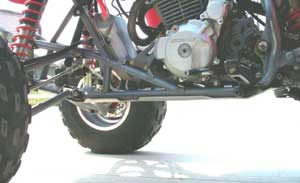

Shortly after I purchased my 400EX, I decided that it needed more protection from damage than the stock plastic skid plate provided. Based on DG's positive track record, I bought their Baja series full chassis skid plate. It is constructed of 3/16" thick aluminum. The sides are bent up slightly to increase the stiffness and protect the sides of the lower frame tubes. The skip plate provides coverage for the complete underside of the frame. There is even an oil drain hole.

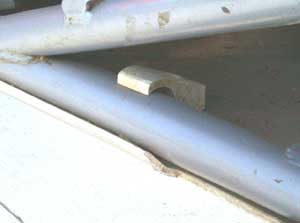

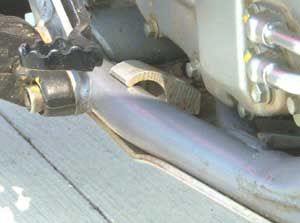

The installation of the skid plate was straightforward. There were only five fasteners, two on each side and one at the front. Contoured aluminum blocks wrapped over the top of the lower frame tubes and were secured to the skid plate with bolts. All of the bolt holes were countersunk to prevent them from catching on obstacles. As the photos show, my mounting blocks did not fit around the frame tubes very well. It seemed like the holes in the skid plate should have been located further towards the outer edge. This was my only complaint. (Has any one else experienced this problem?)
Functionally, the DG Baja skid plate has proven effective for protecting my 400EX's frame and engine. I have managed to put several dents and scars in it over the past season. I am sure it prevented more serious damage. I would recommend this product to anyone looking for quality chassis protection.
|
