2013 Arctic Cat TRV 700 XT Utility ATV Model Info

Navigation

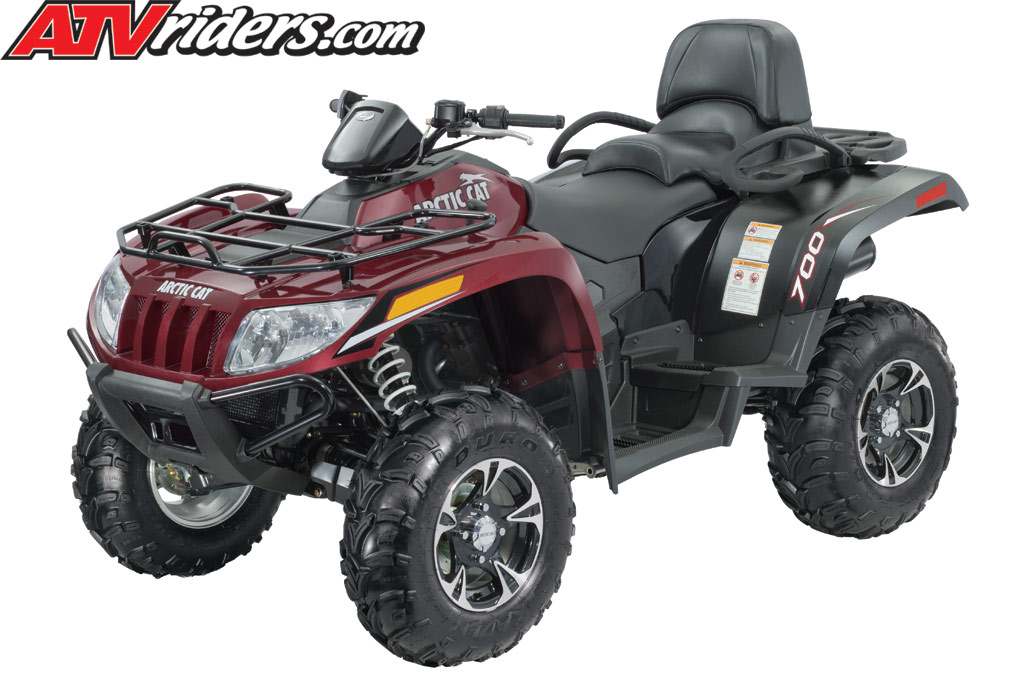

  2013 Arctic Cat TRV 700 XT Utility ATV

2013 Arctic Cat TRV 700 XT Utility ATV

2013 Arctic Cat TRV 700 XT Utility ATV Introduction

For 2013 the success of the TRV line-up has two XT models featuring electronic power steering.

Arctic Cat's Variable Assist Electronic Power Steering (EPS) allows steering assistance to the ATV before it even starts to move at idle. This is a huge benefit to conserving the rider's input energy when in 4WD, and especially when the differential lock is engaged.

Arctic Cat EPS will reduce the torque necessary to steer the ATV when changing direction with loaded racks or navigating tough obstacles like rocks, deep mud or logs.

The variable assist system is driven by an electronic control unit (ECU) that measures steering input force versus tire resistance and vehicle speed then provides appropriate assist to the steering column through an electric motor.

The Arctic Cat power steering ECU program is designed to maintain a light steering input effort, but maintains enough feel so you have a better understanding of what the tire contact patch is doing in relation to the terrain. Arctic Cat EPS will keep the rider and the ATV connected which is lost on competitive units after sustained riding.

The TRV has numerous features to ease riding convenience. Chief among them is a two-up seat with cushioned seat back for legal trail riding. Improved ergonomics and an easy pin-pull removal system allow you to transform the TRV into a single-rider vehicle. Passengers will appreciate integrated footrests for smooth and secure footing.

An all-encompassed electronic 2WD/4WD/Differential Lock switch on the right hand control makes going in/out of 4WD or Diff Lock an easier process.

Other premium features include zero-maintenance suspension bushings, sealed drive shafts, a large 6.5-gallon fuel tank and durable, full-length plastic skid plate.



2013 Arctic Cat TRV 700 XT Utility ATV - 2013 Features

  • Added swaybar, recalibrated shocks and springs for a plusher ride
  • Park in transmission with High, Low and Reverse (700)
  • 550 engine – 545cc, EFI, SOHC, liquid-cooled, single-cylinder
  • 700 engine – 695cc, EFI, SOHC, liquid-cooled, single-cylinder
  • XT Package – Painted bodywork, all-new 12-inch aluminum wheels and Electronic Power Steering
  • TRV 550 XT – Emerald Green Metallic
  • TRV 700 XT – Desert Red

2013 Arctic Cat TRV 700 XT Utility ATV Leading Features

  • Front SpeedRack allows quick installation and removal of a wide variety of Arctic Cat exclusive accessories without the need for tools, 100-lb. capacity
  • Set the spring preload (5 rear positions, 5 front positions) on the shocks to tailor the ride to individual riding styles, terrains and loads
  • Gauge displays up to 14 critical operation information indicators including: clock/hour meter, fuel level, mode button, set/reset button, odometer/trip, gear position, speedometer/tachometer, needle display, differential lock, drive select, high beam, battery condition, temperature and oil pressure.
  • 2-in. receiver allows the consumer to remove the hitch from their 2-in. automotive receiver and install it into the ATV's receiver hitch
