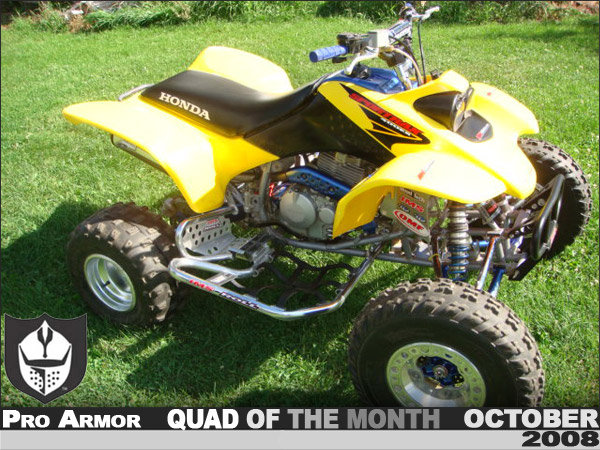

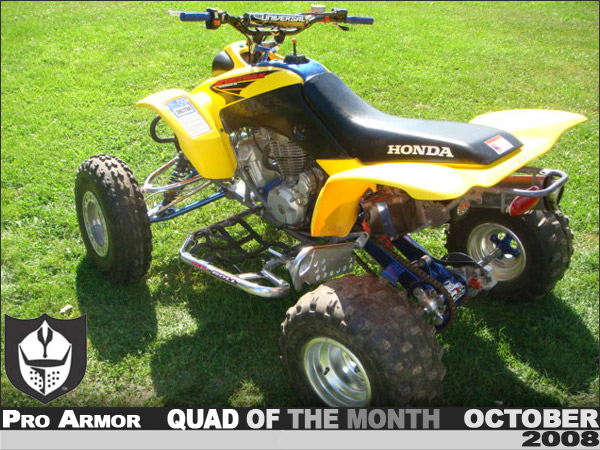

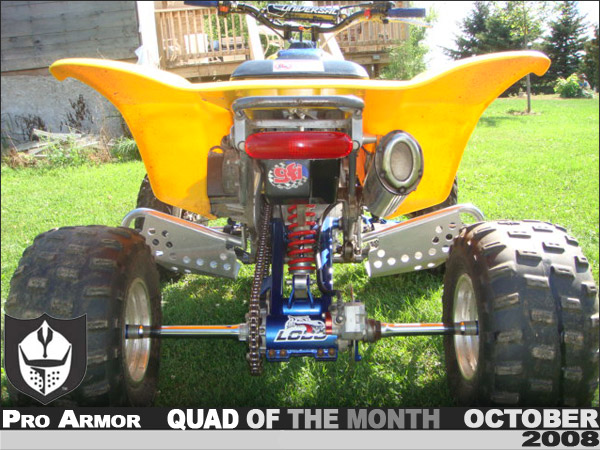

Custom Axis/Roll Design Honda 416EX ATV

Pro Armor October Quad of the Month

"First off I would like to thank Atvriders and Pro Armor and to everyone that voted for me this month. This quad could'nt have come this far without the help and support of this wonderful site and it's members. Most importantally I want to thank my fiancee for putting up with my addiction to this sport and for letting me buy all the parts neccesary to complete my dream quad. "

Chassis | Suspension | Controls:

Frame: Stock Silver
A Arms: Roll Design LT +3 Chrome uppers and Blue Metallic Lowers
Swingarm: Roll Design +1.25 Blue Metallic
Steering Stem: Roll Design +1 with Roll Design 7/8th Clamps
Footpegs: Roll Design Kick-up Style Polished
Stabilizer: None
Axle: LSR Axcaliber +4
Carrier: Stock
Locknut: Stock
Hubs F|R: Stock Blue Metallic
Bars: Universal Solex CR Low bend
Throttle/Clutch Lever: Stock/ SRP EZ-Pull Clutch perch
Grips: Scott Huricane
Nerfs: IMS/Roll Design Pro Stock with Black Webbing
Bumper: IMS/Roll Intimidator Black PC
Grab Bar: Stock
Front Shocks: Custom Axis LT Remote Rezzies with Comp/Reb/ride height Adj
Rear Shock: Stock
Brake Lines: Front-Galfer Stainless Steel +3, Rear-Stock
Rotors F|R: Stock
Rims F|R: ITP Polished Baja’s with Chrome valve stems all around
Tires F|R: ITP Holeshot HD’s All around

Custom Axis/Roll Design Honda 416EX ATV - October QOTM

Body:

Plastic: Stock
Graphics|Seat Cover: Stock
Number Backgrounds: None
Handguards: None
Bar Pad: Universal
Fuel Tank: Stock

Powertrain:

Cylinder|Head: Bored Honed/ C&D Race Ported head, 3 Angle Valve job
Bore & Stroke: 87mm X 70mm
Displacement: 416 11:1 JE Piston with Namura Gaskets
Cam: Hotcam Stage 2
Carburetor: Stock Jetted 170K main, 40 Pilot, Needle in the 4 slot from top,
Air Filter|Box: White Brothers PowerFilter/ Stock Box no lid
Pipe|Silencer: White Brothers E-Series Slip-On Exhaust
Clutch|Plates: Stock Clutch and Plates
Gearing F|R: Primary Drive 14/38 gearing
Chain: Primary Drive Gold X-ring
CDI|Killswitch: Stock/ None
Cooling: OMF Air Scoops
Other: Painted parts, Clarke Gas Vent, EBC Severe Duty Brake Pads,Moose PB Block off, Motion Pro Clutch Cable,
