Quad
of the Month - August 2011 |

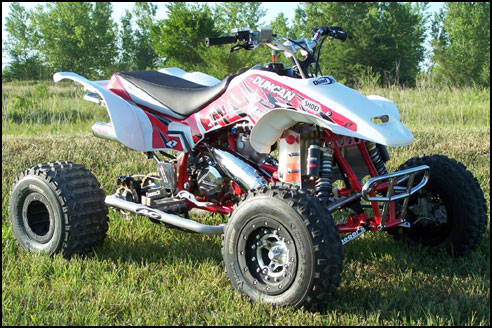

Dan
Hung's Honda TRX250R ATV
"First off, thank
you to ATVRiders.com for hosting the
Quad of the Month
contest, I had a blast building this
Laeger Pro-Trax. Over the years, I
have grown quite fond of the TRX250R's,
the simplicity and beauty of these
bikes. This bike handles unbelievably
and the power plant is simply awesome!
Most importantly, I want to thank
my wife for supporting my hobby from
all aspects. Lastly, I want to give
a shout out to all the members in
the TRX250R Section! Thanks for all
the technical knowledge, and inspiration
to build another machine from seeing
build-after- build."
-Dan Hung
|
| Chassis
| Suspension | Controls: |
| Frame |
2001 Laeger CR500 Rear, Wide
Front |

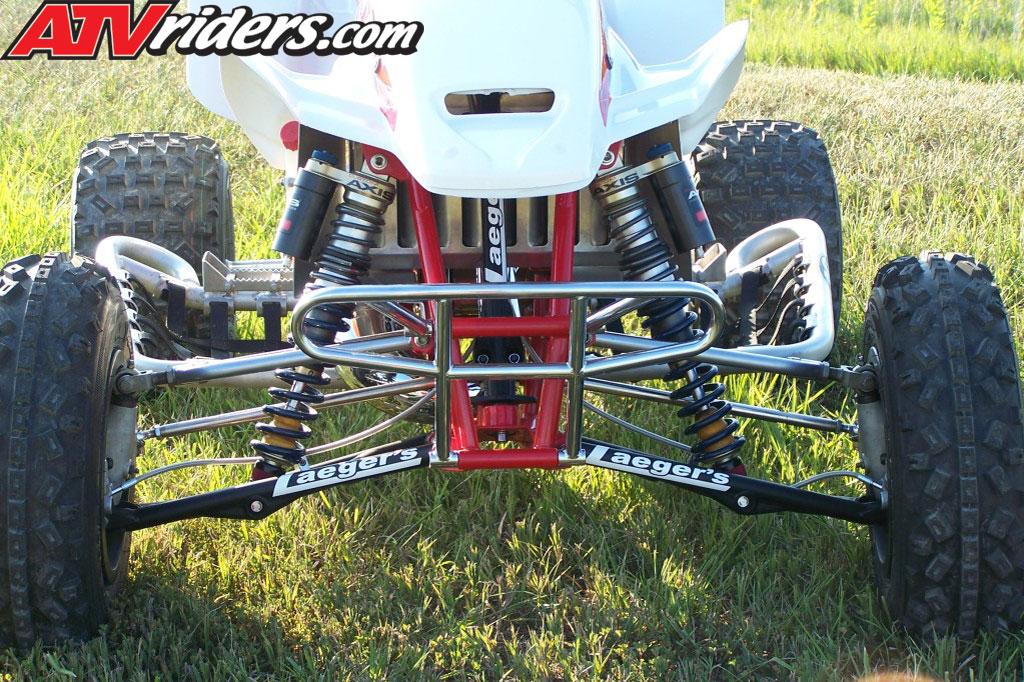

| A Arms: |
Laeger Plus 3" Long Travel ProTrax |
| Swingarm: |
Laeger CR500 Rear MX Swingarm |
| Steering Stem: |
Laeger Plus 1.75" |
| Stabilizer: |
None |
| Axle: |
RPM Dominator II Plus 2-4" |
| Carrier: |
LSR Billet Twin Row |
| Locknut: |
LSR AnitFade |
| Hubs F|R: |
LSR UltraLites |

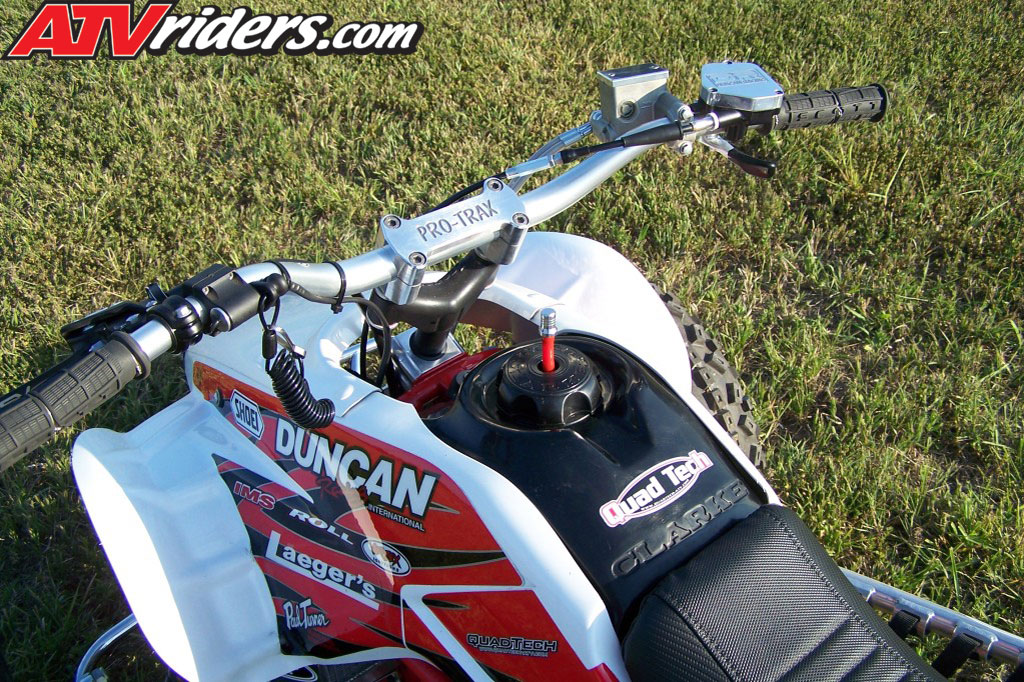

| Bars: |
Tag Fat Bars |
| Throttle/Clutch Lever: |
OEM with Duncan Racing Billet Cover |
| Grips: |
- |
| Nerfs: |
AC Racing ProPegs |
| Bumper: |
Duncan Racing |
| Grab Bar: |
AC Racing |
| Front Shocks: |
Custom Axis Piggy Back - Fully Adjustable |
| Rear Shock: |
Custom Axis Remote - Fully Adjustable |
| Brake Lines: |
Galfer Steel Braided |
| Rotors F|R: |
Braking |
| Rims F|R: |
Douglas |
| Tires F|R: |
Maxxis Razr Cross 18(R) 20(F) |
| Engine
| Drive train: |
| Cylinder|Head: |
Duncan Racing PC2000 275cc PV |
| Bore & Stroke: |
- |
| Displacement: |
275cc |
| Cam: |
- |
| Piston: |
- |
| Carburetor: |
Keihn 38mm PWK Air Stryker |
| Air Filter|Box: |
K&N with CFM Plate; 1986 OEM Boot |
| Pipe|Silencer: |
Paul Terminator Eliminator with Fat Boy
2 Silencer |
| Clutch|Plates: |
Hinson Complete |
| Case Saver: |
- |
| Chain: |
- |
| Chain Roller: |
- |
| Gearing F|R: |
13|39 with DID X-Ring ATV Chain |
| CDI|Killswitch: |
2001 CR Ignition with ProDesign Tether Switch |
| Cooling: |
PWR Radiator, CV4 Radiator Hoses, OMF Shrouds,
WRC Bottle |
| Other: |
-
|
| Body
| Graphics |
| Plastic: |

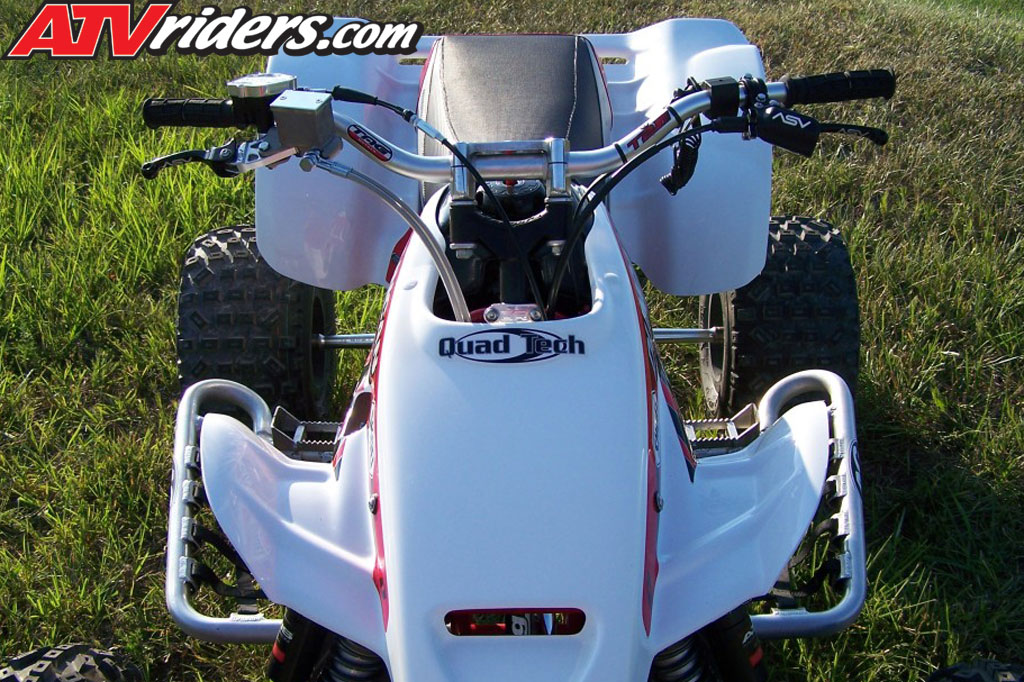

Full Bore Innovations with CF
QuadTech Naca Hood |
| Graphics|Seat Cover: |
QuadTech Seat Cover with Duncan Racing Graphics |
| Number Backgrounds: |
None |
| Handguards: |
None |
| Bar Pad: |
Stock |
| Levers: |
ASV Innovations, Hinson Billet Rear Brake
Pedal |
| Fuel Tank:
|
Clarke |
