2008 Yamaha Rhino 450 Automatic 4x4 Model Header

2008 Yamaha Rhino 700 FI Automatic 4x4 UTV Info

NAVIGATION

Red 2008 Yamaha Rhino 700 FI Auto 4x4 UTV   Camo 2008 Yamaha Rhino 700 FI Auto 4x4 UTV

Red 2008 Yamaha Rhino 700 FI Auto 4x4 UTV

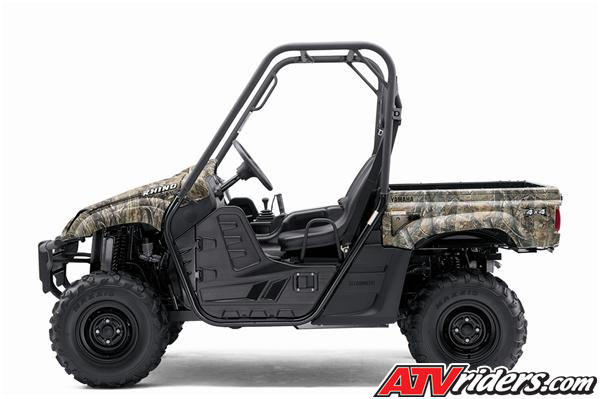

Camo 2008 Yamaha Rhino 700 FI Auto 4x4 UTV


New For 2008
  • All-new 686cc engine puts out plenty of broadband power. New four-valve head with 9.2:1 compression bumps power and efficiency.
  • Electronic fuel injection ensures peak performance in nearly all conditions and elevations, along with instantaneous cold starts.
  • Tough, rotomolded doors keep mud, water and dirt on the trail where they belong.
  • New four-wheel disc brakes provide unsurpassed stopping power, and a new parking brake is super convenient.
  • Cool, comfortable new steering wheel and new passenger grab handles.
  • Now with two cup holders for even greater creature comfort.
  • New underhood tool-free air filter is a snap to service.
  • CV joint protectors for long, trouble-free life.

Yamaha Rhino 700 FI UTV Key Features

  • Comfortable interior with automotive-type controls: A new steering wheel, left-side foot brake pedal/right-side foot accelerator pedal, center-mounted console shifter and parking brake lever, turn-to-start ignition switch, indicator lights and 12-volt accessory outlet render the Rhino totally user-friendly.
  • 686cc liquid-/oil-cooled, four-stroke engine and light weight add up to an excellent power-to-weight ratio and great performance.
  • Industry-exclusive fully automatic Ultramatic® transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system
    available. Maintaining constant belt tension reduces wear, gives instant throttle response and provides industry-exclusive all-wheel downhill engine braking.
  • Industry-exclusive three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential
    4WD—all with the simple push of a button.
  • Fully independent four-wheel suspension: Double-wishbones front and rear deliver 7.3 inches of wheel travel and 12.1 inches of ground clearance; fi ve-way preload-adjustable shocks provide maximum tire contact and amazing comfort while navigating rough terrain.
  • Thick bucket seats and that great long-travel suspension system work together to provide the smoothest ride in the industry.

Yamaha Rhino 700 FI UTV Engine

  • 686cc liquid-cooled, fuel-injected beast makes this one the alpha Rhino.
  • Dual-range (Hi/Lo) drive with reverse taps into more pulling power in low and more performance in high.
  • Console-mounted dual-range (H/L/N/R) shift lever.
  • Sealed drive case keeps out water and debris, and a hand-operated side cover drain lets out what little gets in.
  • Specially designed full stainless-steel exhaust system features aluminum heat shields and a screen-type spark arrestor for superb power characteristics with minimum noise output.
  • Large-capacity aluminum radiator and oil cooler with fan-assist delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
  • Specially designed drive system air intake vent helps prevent overheating and keeps water and mud from entering the drive case.

Yamaha Rhino 700 FI UTV Chassis/Suspension

  • Steel frame is lightweight and features outstanding durability with superior rigidity for superb handling.
  • Light, responsive rack-and-pinion steering features a fully sealed steering column and double U-jointed steering linkage for smooth operation and class-leading turning radius—even in 4WD.
  • 12.1-inch ground clearance delivers maximum underbelly protection while enhancing terrainability.
  • Low-maintenance front shaft drive features gear case and electronic servo-activated 2WD/4WD/Diff Lock via the On-Command® system. Direct rear shaft drive eliminates the U-joint for greater durability and more efficient power transfer at all rpm.
  • Heavy-duty CV joint guards protect against rock and debris damage.
  • Standard center-mounted, heavy-duty 2-inch receiver-style hitch can tow over 1,200 pounds.
  • Stamped steel dump bed is rated to haul 400 pounds of gear, with a latch that opens from either side.
  • Aggressive Maxxis tires offer great traction, longer life and a comfortable ride.

Additional Features
  • Digital instrument panel boasts multifunction LCD display with speedometer, odometer, dual tripmeters, hour meter, 4WD status, transmission position, clock and fuel gauge.
  • Integrated, easy-to-read fuel gauge makes it easy to keep track of your fuel supply.
  • Large, specially designed seats are extra plush and supportive for all-day driver and passenger comfort.
  • Operator and passenger seat belts.
  • Dual 30-watt multireflector Krypton bulb headlights with high/low beams feature stylishly sleek cat-eye design; dual 5-watt/21-watt tail/brake lights.
  • Large, 7.9-gallon fuel tank for long rides.
  • Maintenance-free battery provides power, even in cold weather.
  • Built in Newnan, GA, USA.
