2008 Yamaha Raptor 700R Performance Sport ATV - Specifications

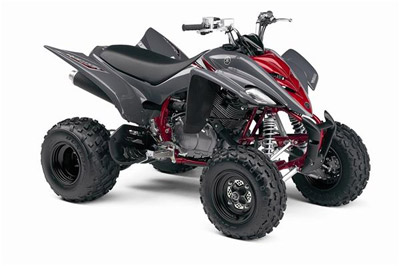

2008 Yamaha Raptor 700R ATV Red Gray

Yamaha Raptor 700R ATV Specifications:

Engine
Type 686cc, liquid-cooled, SOHC 4-stroke single w/fan, 4-valve
Bore x Stroke 102mm x 84mm
Compression Ratio 9.2:1
Carburetion Yamaha Fuel Injection (YFI) , 44mm
Ignition Digital TCI w/16-Bit ECU
Starting System Electric
Transmission 5-Speed manual clutch w/reverse
Drive Train 2WD; sealed o-ring chain, eccentric adjustment

Chassis
Suspension/Front Independent double wishbone, 9.1" w/5-way preload adjustment
Suspension/Rear Cast aluminum swing arm, 10.1" w/rebound, compression and threaded preload adjustment
Brakes/Front Dual hydraulic disc, twin pistons
Brakes/Rear Hydraulic disc, self-adjusting park brake function
Tires/Front AT21 x 7-10 radial
Tires/Rear AT20 x 10-9 radial

Dimensions
L x W x H 72.6" x 46.1" x 44.5"
Seat Height 32"
Wheelbase 50.4"
Ground Clearance 4.4"
Fuel Capacity 2.9 gal.
Dry Weight 396 lb.

Other
Lighting Dual 30W Krypton multireflecter headlights and 3.9/0.5W brake light

Warranty 6 Month (Limited Factory Warranty)
