2008 Yamaha Raptor 50 Mini ATV - Specifications

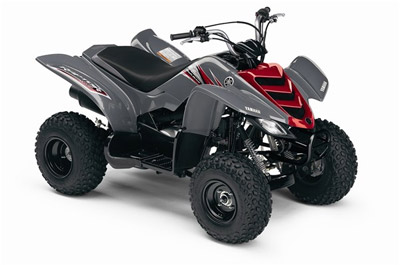

Yamaha Raptor 50 Mini ATV

Raptor 50 Mini ATV Specifications:

Engine
Type	49cc air-cooled, SOHC 4-Stroke Single

Bore x Stroke	39mm x 41.4mm

Compression Ratio	10.0:1

Carburetion	Mikuni 16mm

Ignition	CDI

Starting System	Electric

Transmission	Automatic/F, N

Drive Train	2WD; Shaft

Chassis

Suspension/Front	Leading arm, 2.3" travel

Suspension/Rear	Swing arm, 2.2" travel

Brakes/Front	Dual sealed drum

Brakes/Rear	Sealed drum

Tires/Front	AT16 x 7-7

Tires/Rear	AT16 x 8-7

Dimensions
Length	60.5"

Width	32.5"

Height	36"

Seat Height	24.3"

Wheelbase	40.6"

Ground Clearance	3.0"

Fuel Capacity	1.8 Gallons

Dry Weight	237 Lbs.
