2008 Yamaha Grizzly 80 Mini/Youth ATV - Specifications

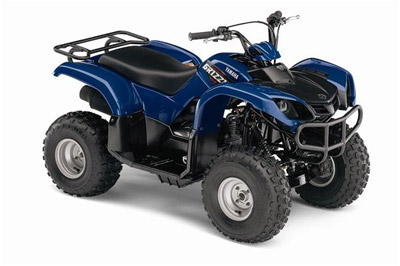

Yamaha Grizzly 80 Youth ATV

Grizzly 80 Youth ATV Specifications:

Engine:
Type	79cc air-cooled SOHC 4-stroke single

Bore x Stroke	47mm x 45.6mm

Compression Ratio	9.6:1

Carburetion	Mikuni 16mm

Ignition	CDI

Starting System	Electric

Transmission	3-Speed Automatic Clutch

Engine Braking	Rear wheel

Drive Train	2WD; shaft



Chassis:

Suspension/Front	Leading arm, 2.3” travel

Suspension/Rear	Swing arm, 2.2” travel

Brakes/Front	Dual sealed drum

Brakes/Rear	Sealed drum

Tires/Front	AT18x7-7

Tires/Rear	AT18x8-7


Dimensions:
L x W x H	61.0” x 33.7" x 36.6"

Seat Height	26.2”

Wheelbase	40.6”

Turning Radius	N/A

Ground Clearance	3.9”

Fuel Capacity	1.8 gal.

Dry Weight	260 Lb.

Rack Capacity	N/A Front/11Lb. Rear



Other:
Color	Steel Blue; Hunter Green; Realtree® AP HD™ Camouflage
