2008 Grizzly 125 Automatic Utility ATV - Specifications

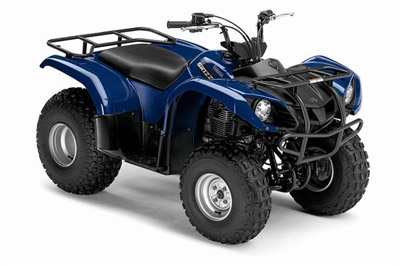

2008 Grizzly 125 Automatic Utility ATV

Grizzly 125 Auto. ATV Specifications:

Engine:
Type	124cc air-cooled, SOHC 4-stroke single

Bore x Stroke	49mm x 66mm

Compression Ratio	9.0:1

Carburetion	Mikuni 18mm

Ignition	DC - CDI

Starting System	Electric

Transmission	V-belt automatic/F, N, R

Drive Train	2WD; sealed o-ring chain



Chassis:

Suspension/Front	Independent wishbone, 2.8” travel

Suspension/Rear	Swing arm, 3.2” travel

Brakes/Front	Dual sealed drum

Brakes/Rear	Sealed drum

Tires/Front	AT20x7-8

Tires/Rear	AT22x10-8


Dimensions:
L x W x H	66.9” x 39.0" x 38.6"

Seat Height	27.0”

Wheelbase	42.5”

Turning Radius	114"

Ground Clearance	5.7”

Fuel Capacity	2.0 gal.

Dry Weight	306 Lb.

Rack Capacity	11 Lb.Front/22 Lb. Rear



Other:
Instrumentation	N/A

Lighting	Dual 30W Krypton multireflector headlights & 21/5W brake light
