2007 Yamaha Raptor 350 Sport ATV - Specifications

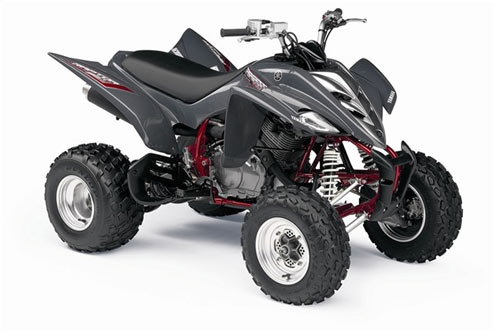

Yamaha Raptor 350 ATV

Yamaha Raptor 350 ATV Specifications:

Engine
Type	348cc air-cooled, SOHC 4-Stroke Single
Bore x Stroke	83mm x 64.5mm

Compression Ratio	9.2:1

Carburetion	Mikuni 36mm BSR

Ignition	DC - CDI

Starting System	Electric

Transmission	6-Speed manual clutch w/reverse

Drive Train	2WD; sealed O-ring chain

Chassis

Suspension/Front	Independent double wishbone, 7.9" w/5-way preload adjustment

Suspension/Rear	Swing arm, 8.3" travel and threaded preload adjustment

Brakes/Front	Dual hydraulic discs

Brakes/Rear	Hydraulic disc

Tires/Front	AT21x7-10

Tires/Rear	AT20x10-9

Dimensions
Length	69.7"

Width	43.1"

Height	42.5"

Seat Height	32.3"

Wheelbase	47.6"

Ground Clearance	4.5"

Fuel Capacity	2.4 Gallons

Dry Weight	375 Lbs

Other
Lighting	Dual 30W Krypton Multireflector Headlights & 21/5W Brake light
