2013

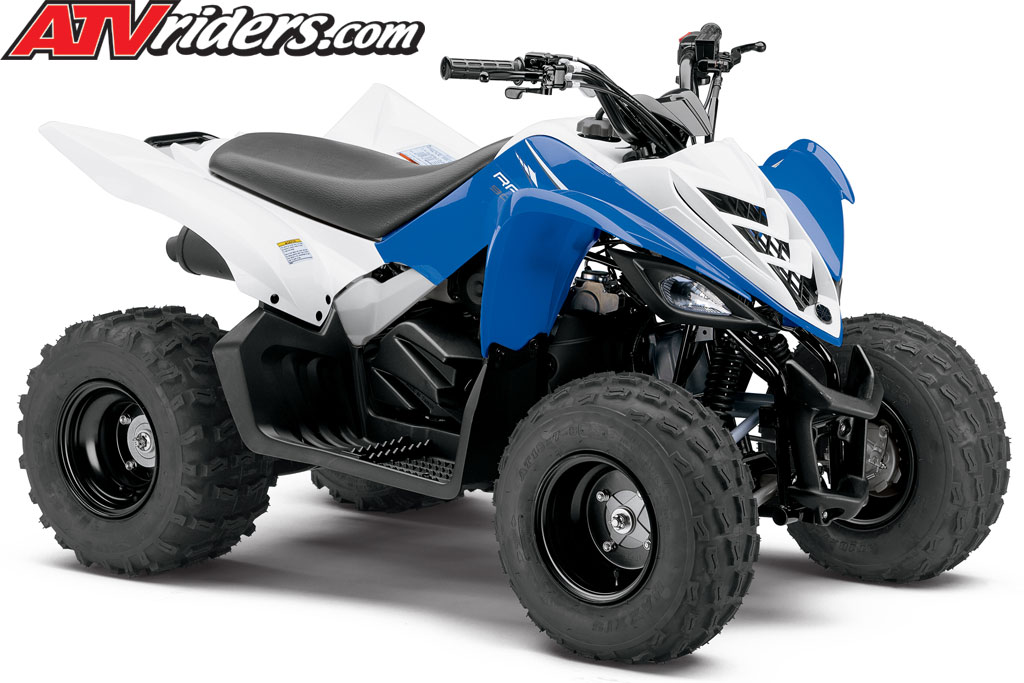

Yamaha Raptor 90 Youth ATV - Yamaha Blue / White
2013

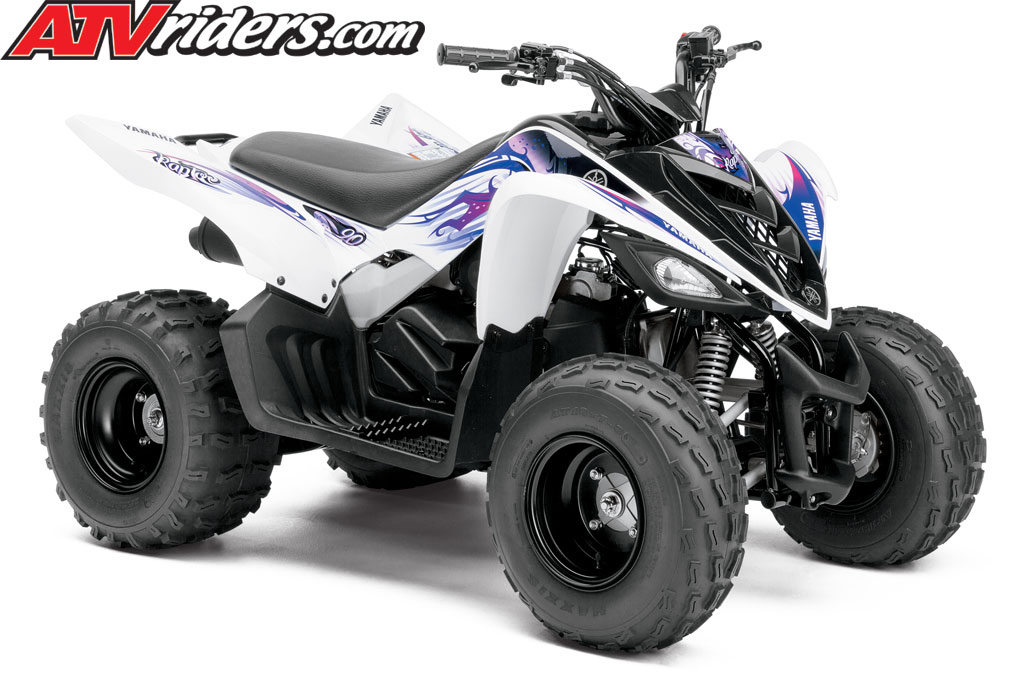

Yamaha Raptor 90 Youth ATV - White w/ choice of graphics
Yamaha
Raptor 90 Mini ATV Key Features
Raptor 90 has the features to deliver
more fun than ever before, with a
88cc SOHC 2-valve engine tuned to
develop excellent low-to-mid rpm range
performance. It also has features
surprising in this class and price
range, like a fully automatic CVT
transmission, dual A-arm front suspension,
rear disc brake, low-profile tires,
and styling unmistakably inspired
by the mighty Raptor 700R.
Dual A-arm front suspension has
4.4-inches of travel for sporty-riding
comfort, while adding to the Raptor
90’s big-ATV look. Shocks have
5-way preload adjustment to accommodate
a variety of riders and terrain. The
rear swingarm, also 5-way preload
adjustable, offers 3.3-inches of travel.
For sporty looks and handling,
Raptor 90 uses low-profile Maxxis®
tires. For riding comfort, there are
aggressive-looking full floorboards.
For strong, reliable stopping power,
there’s a hydraulic disc brake
with drilled rotor in the back, and
dual sealed drums in the front.
Restricting power output for learning
riders is exceptionally convenient;
there’s a simple plug-in for
the CDI unit.
Yamaha
Raptor 90 Mini ATV Engine
The go-getter 88cc 4-stroke SOHC
2-valve engine is tuned to develop
excellent low-to-mid-range performance,
just where it’s needed. Engine
is force-air cooled for performance
and long engine life, and it uses
simple, reliable wet-sump lubrication.
Easy-to-operate electric starting
comes standard, of course, and an
emergency kick starter is also provided
in a storage spot under the seat for
more peace of mind.
Constantly variable transmission
(CVT) means no shifting. Handy for
all riders, it’s a feature entry-level
riders particularly appreciate.
Engine power is transferred to
the rear wheels via a tried-and true
chain drive.
Yamaha
Raptor 90 Mini ATV Chassis/Suspension
Dual A-arm front suspension has
4.4-inches of travel for sportyriding
comfort, while helping to give the
front end the look of a big Raptor.
Shocks have 5-way preload adjustment
to accommodate a variety of riders
and terrain. The rear swingarm, also
5-way preload adjustable, offers 3.3-inches
of travel to enhance riding comfort
and traction.
Raptor 90 is designed to be comfortable
for a wide variety of riders. With
its roomy ergonomics, growing riders
12 and older won’t outgrow the
machine before they’re ready
for more displacement when they’re
older.
Newly designed Maxxis® low-profile
tires, AT18 x 7-8 front and AT18 x
9-8 rear, give Raptor 90 sporty looks
and sporty handling.
For strong, reliable stopping power,
there’s a hydraulic disc brake
in the back with a drilled rotor that’s
protected against rocks and other
obstacles by a beefy guard. Up front,
there are dual sealed drums. There’s
a handlebar-mounted parking brake,
too.
Additional
Features
The DC-CDI digital ignition timing
control system means reliable performance,
with a strong, efficient spark.
Battery and other electrical components
are conveniently and centrally located
for service. Waterproof connectors
add to the overall reliability.
