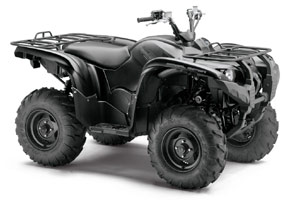

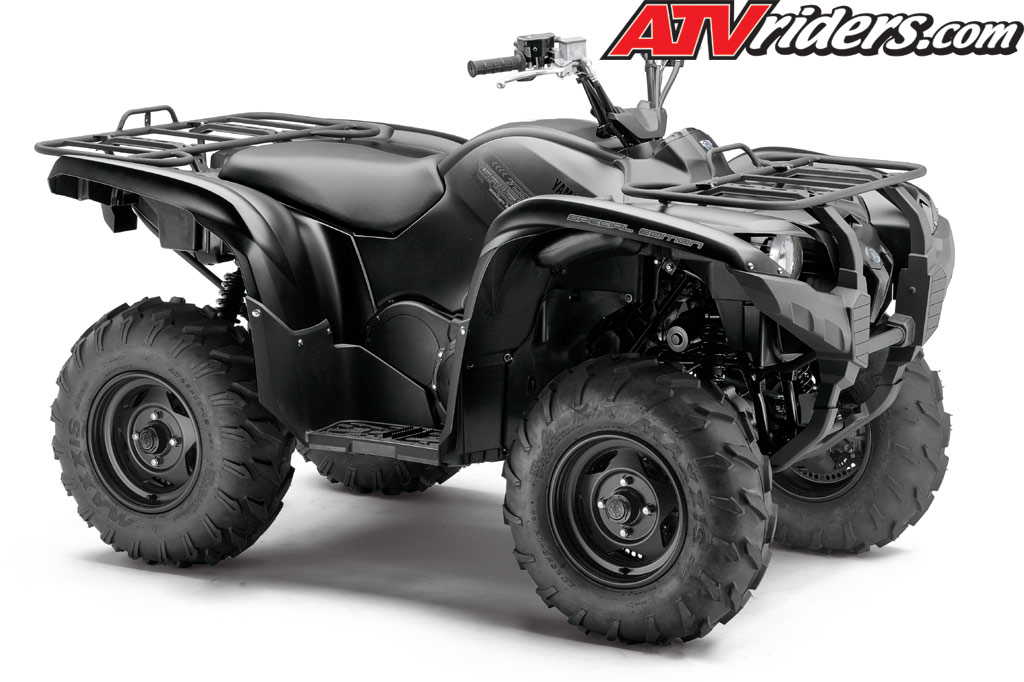

2013 Yamaha Grizzly 700 Tactical
Black SE 4x4 Utility ATV Info
 |
|
2013 Yamaha Grizzly
700 Tactical Black SE
4x4 Utility ATV
|
Yamaha
Grizzly 700 Tactical Black SE 4x4 Utility
ATV
Key Features
|
- The Yamaha Grizzly 700 Special
Edition Utility ATV is coated with Tactical Black
paint and includes cast aluminum wheels
and special graphics.
The most powerful Grizzly ever: 686cc
liquid-cooled, four-stroke engine and
light weight has the best power-to-weight
ratio of any Yamaha utility ATV.
Yamaha Fuel Injection means instantaneous
cold starts and optimal performance
in nearly any condition, from sea level
to 15,000 feet.
Industry first: Electric Power Steering
system lightens steering for superior
comfort and terrainability.
- Industry-exclusive,
fully automatic Ultramatic® transmission
is the most advanced drive system in
ATVs. An automatic centrifugal clutch
maintains constant belt tension for
reduced belt wear and uses a sprag clutch
for all-wheel downhill engine braking
in 4WD mode and reverse.
- Three-position On-Command®
In/Out 4WD feature lets you switch between
2WD, limited-slip 4WD and a fully locked
differential 4WD—all with the
simple push of a button. Override button
allows engine to make maximum rpm in
full Diff. Lock mode.
- Fully independent long-travel
four-wheel suspension features double-wishbone
suspension front and rear with five-way
preload-adjustable shocks for maximum
control and comfort over rough terrain.
Smoothest-running and -riding Grizzly
ever.
- Trick digital instrument
panel boasts a multifunction LCD display
with speedometer, odometer, dual tripmeter,
hour meter that counts the engine’s
running hours, 4WD status, transmission
position, clock and fuel gauge.
|
Yamaha
Grizzly 700 Tactical Black SE 4x4 Utility
ATV
Engine
|
- Raptor-based four-valve
combustion chamber design produces a
potent combination of low-rev torque,
instant throttle response and high horsepower.
- Compact engine design
features a 35-degree cylinder angle
for ground clearance and lower seat
height for quick steering and maneuverability.
Gear-driven crankshaft balancer shaft
and rubber-damper engine mounts reduce
vibration.
- Ceramic-composite cylinder
liners provide outstanding durability
and heat dissipation; forged piston
is light and strong and rides a carburized,
chrome-moly connecting rod.
- Two-lobe overhead cam
and a pair of needle-roller rocker arms
reduce friction by 50 percent for increased
fuel efficiency and torque.
Mikuni fuel injection with 44mm
bore and throttle position sensor means
easy cold starts and flawless fuel delivery
in nearly any condition.
Pushbutton electric start with seven-disc
torque-limiting damper assembly protects
the starter motor.
- Straight driveshaft
layout eliminates U-joints for reduced
friction, noise, vibration and maintenance.
Stainless steel exhaust system features
aluminum heat shields and a screen-type
spark arrestor for great power with
minimum noise output.
- High-capacity radiator
with fan-assist delivers maximum cooling
efficiency and is positioned high in
the frame for optimal protection.
Automatic cam chain tensioner reduces
engine maintenance and helps extend
engine life.
- Override button allows
engine to make maximum rpm in full Diff.
Lock mode.
Sealed drive case keeps out water and
debris to help increase durability.
Oil access cover allows easy access
to check oil level.
|
Yamaha
Grizzly 700 Tactical Black SE ATV
Chassis/Suspension
|
- WideArc front
suspension A-arms provide outstanding
ground clearance.
Five-way preload-adjustable shocks provide
a comfortable ride, whatever the load
or trail conditions.
- Gas charged rear shocks
offer a quality damping feel and excellent
performance over a long period of time.
Four-wheel hydraulic disc brakes serve
up consistent, long-lasting braking
power under all sorts of nasty conditions.
- Electric power steering
varies assist according to speed and
torque for increased comfort and incredible
maneuverability— even in 4WD.
5.3-gallon fuel tank is located under
the seat for excellent mass centralization
and handling; there’s a 4.8-liter
water-resistant storage compartment
under there, too.
- 11.8 inches of ground
clearance and full-length composite
skidplate deliver maximum underbelly
protection while enhancing terrainability.
- 25x8-12 front and 25x10-12
rear Maxxis® tires provide responsive
steering and handling along with excellent
comfort.
- Rugged injection-molded
front bumper and CV joint guards protect
against rock and debris damage.
|
Yamaha
Grizzly 700 Tactical Black SE ATV Additional
Features |
- Center-mounted, heavy-duty
trailer hitch comes standard and can
tow more than 1300 pounds.
- LCD instrument display
contains fuel injection and electric
power steering information, as well
as bar-type fuel gauge, speedometer,
odometer, trip meter, clock, and Diff.
Lock indicator.
- Rugged steel cargo
racks with special, extra-durable wrinkle
paint finish can pack a total of 286
pounds combined (99 front, 187 rear).
- Fenders have a textured
finish that resist scratching and scuffing.
Dual 35-watt multireflector halogen
bulb headlights with high/low beams
light up the night.
- Assembled in Newnan,
GA, U.S.A.
|
