2012 Yamaha Raptor 700R Performance Sport ATV - Specifications

NAVIGATION
Introduction | Specifications
2012 Yamaha Raptor 700 Special Edition

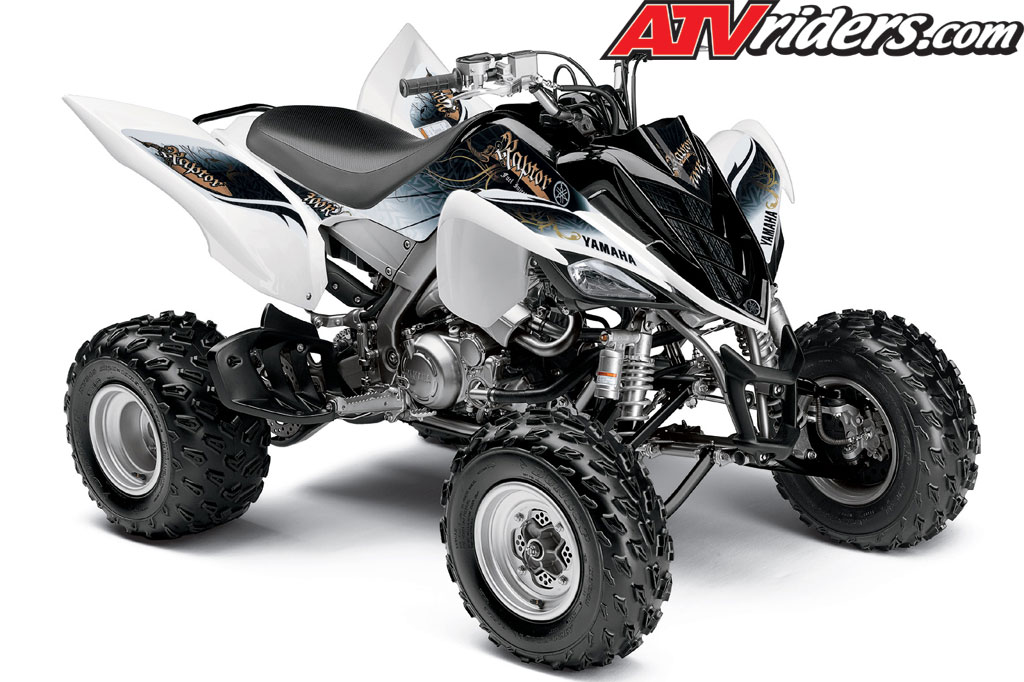

2012 Yamaha Raptor 700 - White Talon
2012 Yamaha Raptor 700 - Special Edition
2012 Yamaha Raptor 700 - White Talon

Yamaha Raptor 700R ATV Specifications:

Engine
Type 686cc, 4-Stroke Single, Liquid Cooled w/ Fan, SOHC
Bore x Stroke 102mm x 84mm
Compression Ratio 9.2:1
Carburetion Yamaha Fuel Injection (YFI) , 44mm
Ignition 16 Bit ECU
Starting System Electric
Transmission 5-Speed manual clutch w/reverse
Drive Train 2WD; sealed o-ring chain, eccentric adjustment

Chassis
Suspension/Front Independent Double Wishbone, 9.1” w/ Piggy Back High/Low Speed Compression, Rebound and Threaded Preload Adjustment
Suspension/Rear Cast Aluminum Swing Arm, 10.1” Piggy Back High/Low Speed Compression, Rebound and Threaded Preload Adjustment.

Brakes/Front Dual Ventilated Hydraulic Disc, Twin Piston
Brakes/Rear Wave Style Ventilated Disc, Self Adjusting Park Brake Function
Tires/Front AT21 x 7-10 radial
Tires/Rear AT20 x 10-9 radial

Dimensions
L x W x H 72.6" x 46.1" x 44.5"
Seat Height 32"
Wheelbase 50.4"
Ground Clearance 4.4"
Fuel Capacity 2.9 gal.
Wet Weight 422 lb.

Other
Lighting Dual 30W Krypton Multi-reflector Headlights and 3.9/0.5W LED Brake light
Instrumentation
Digital LCD Multi-function display. Speedo, Odo, Dual Trip, Hour, & Clock
