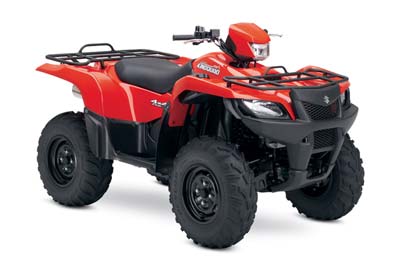

2008 Suzuki KINGQUAD 750 AXi
4x4 ATV - Specifications
| Model: |
2008 KingQuad
750AXi |
| Engine: |
722cc, DOHC, four-stroke,
single cylinder, liquid-cooled |
| Bore
Stroke: |
104.0 X 85.0mm |
| Compression
Ratio: |
10.0:1 |
| Fuel
System: |
Fuel Injection |
| Lubrication: |
Wet sump |
| Ignition: |
CDI |
| Starter: |
Electric |
| Transmission: |
V-belt CVT automatic with
high/low range sub-transmission, 2WD/4WD/4WD
front differential lock |
| Final
Drive: |
Shaft drive |
| Overall
Length: |
2120mm (83.5 in.) |
| Overall
Width: |
1210mm (47.6 in.) |
| Overall
Height: |
1245mm (49.0 in.) |
| Seat
Height: |
860mm (33.9 in.) |
| Ground
Clearance: |
260mm (10.2 in.) |
| Wheelbase: |
1280mm (50.4 in.) |
| Dry
Weight: |
273kg (601 lbs.) |
| Suspension
Front: |
Independent, double A-arm,
oil-damped, five preload settings |
| Suspension
Rear: |
Independent, double A-Arm
oil-damped, five preload settings |
| Brakes
Front: |
Dual hydraulic discs |
| Brakes
Rear: |
Sealed hydraulic disc |
| Tires
Front: |
AT 25 x 8-12 |
| Tires
Rear: |
AT 25 x 10-12 |
| Fuel
Tank Capacity: |
17.5 liter (4.6 gal.) |
| Color: |
Red, Green |
www.SuzukiCycles.com
|
|
|
|
|
|
|
