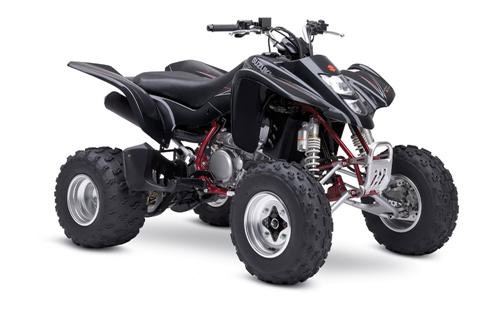

One
ride on a QuadSport Z400 and you'll understand
what heart-pounding performance is all about.
The QuadSport Z400 is engineered to be the best
all-around sport machine for any terrain - from
woods to sand to the track. Boasting industry-leading
technology, the QuadSport Z400 sets the standard
for high-performance sport four-wheelers.
Go ahead
- take aim and turn it loose. The QuadSport
Z400's hard-hitting and high-revving powerplant
lets you blast out of corners and rewards you
with awesome acceleration on the straight-aways.
And talk about maneuverability! Its lightweight
design makes it incredibly agile, while its
state-of-the-art chassis and long-travel suspension
smooth out the gnarliest terrain.
Suzuki
Z400 Sport ATV Engine
Compact & lightweight
398cc 4-stroke, single-cylinder, liquid-cooled
engine with counter- balancer based on the
proven DR-Z400E design - tuned for tractable
power over a wide rpm range
Cylinder head features large
36mm intake and 29mm exhaust valves, plus
a narrow 28º included valve angle creating
a more compact combustion chamber, with high
compression ratio and a straight intake tract
for improved torque. Cams are direct acting-type
with shim-under-bucket valve adjustment
Forged aluminum alloy piston
and SCEM-plated aluminum cylinder are lightweight
and durable. SCEM plating reduces cylinder
weight (no iron sleeve) and improves cooling
efficiency
Large 37mm carburetor with
throttle position sensor - ignition timing
is determined by throttle opening for improved
engine response, especially at high rpm
Liquid-cooling system with
high-capacity radiator and thermostatically-controlled
cooling fan provides consistent engine operating
temperature
Dry-sump lubrication system
allows a compact crankcase and minimal engine
height for optimum engine placement - oil
tank is frame-mounted in front of the exhaust
head pipes
Five-speed transmission with
cable-operated clutch includes an easy-to-use
reverse gear system - just turn the fender-mounted
knob and shift from neutral to reverse using
the gear shift lever
Aluminum gear shift lever
for lighter gearshift feel and reduced weight
Convenient electric start
system includes Start-In-Gear feature - electric
start system and CDI ignition are powered
by compact maintenance-free battery
Magnesium valve cover, clutch
cover and ignition cover for improved engine
appearance and reduced weight
Suzuki
Z400 Sport ATV Chassis/Suspension
Aggressive-styled bodywork
with high fenders and air intake vents to
enhance sport style and improve airflow to
radiator - large T-shaped seat provides high
comfort and maneuverability
Dual 30/30W, vertically-mounted
halogen headlights provide a bold look and
bright illumination - large 5/21W taillight/brake
light combination is standard
Lightweight, high tensile
steel-alloy frame and removable steel sub-frame,
plus aluminum swingarm
Long-travel, independent
double A-arm front suspension with fully-adjustable,
piggyback reservoir-style shock absorbers
- provides 8.5 inches of wheel travel for
a comfortable ride over all types of terrain
Linkage-type rear suspension
features fully adjustable, piggyback reservoir-style
shock absorber with 9.1 inches of wheel travel,
plus 8.5 inches of ground clearance
Large 6.9 inch dual front
disc brakes and single 8.6 inch rear disc
brake - all with single-piston pin-slide calipers
Lightweight aluminum alloy
wheels (F: 10.0 x 5.5, R: 9.0 x 8.0), and
radial tires (F: 22 x 7-10, R: 20x10-9), for
reduced unsprung weight
Aluminum front bumper and
aluminum rear grab bar for improved appearance
and reduced weight
Heavy-duty front bumper and
high-impact resistant polyethylene skid plate
Wide serrated-type footpegs
for high grip and comfort
Large 2.6-gallon fuel tank
with two mounting points for quick removal
and simplified maintenance
Key
Features
The Suzuki QuadSport Z400
is engineered for high-performance off-road
four-wheeling by experienced riders
Aggressive-styled mid-size
sport ATV featuring a dependable 4-stroke
engine and lightweight chassis design with
adjustable long-travel suspension
