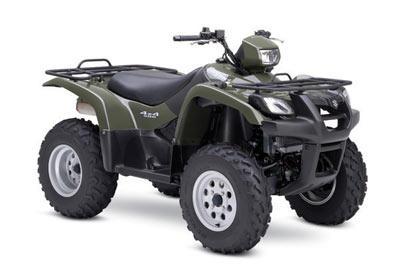

2007 Suzuki Vinson 500 4x4
Semi-Auto Utility ATV Specifications
Vinson
500 4x4 Semi-Auto Specifications:
|
| Engine: |
493cc,
SOHC, four-stroke, single cylinder, liquid-cooled |
| Bore Stroke: |
87.5 X 82.0mm |
| Compression
Ratio: |
10:2:1 |
| Fuel System: |
KeihinT CVK36 |
| Lubrication: |
Wet sump |
| Ignition: |
CDI |
| Transmission: |
5-speed with reverse
and 2-speed subtransmission, 2WD/4WD front differential |
| Final
Drive: |
Shaft drive |
| Overall
Length: |
2095mm (82.5 in.) |
| Overall
Width: |
1170mm (46.1 in.) |
| Overall
Height: |
1235mm (48.6 in.) |
| Seat Height: |
860mm (33.9 in.) |
| Ground
Clearance: |
250mm (9.8 in.) |
| Wheelbase: |
1270mm (50.0 in.) |
| Dry Weight: |
274kg (604 lbs.) |
| Suspension
Front: |
Independent, double
A-arm, oil damped, five preload settings |
| Suspension
Rear: |
Swingarm-type, oil-damped,
five preload settings |
| Brakes
Front: |
Dual hydraulic disc |
| Brakes
Rear: |
Single hydraulic disc |
| Tires
Front: |
AT 25 x 8-12 |
| Tires
Rear: |
AT 25 x 10-12 |
| Fuel Tank
Capacity: |
19.0 liter (5.0 gal.) |
| Color: |
Red, Green, Black |
