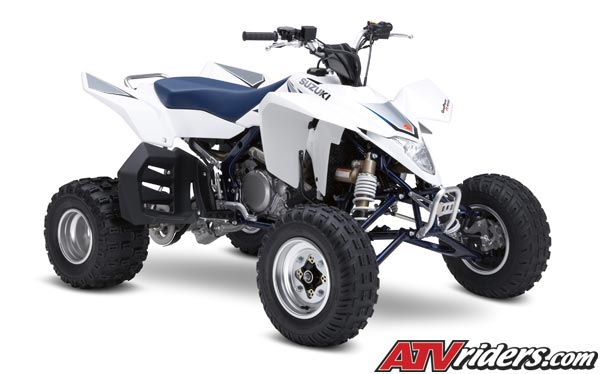

2007 Suzuki QuadRacer LT-R450
Sport ATV - Features & Benefits
 |
|
 |
|
Suzuki
QuadRacer LT-R450 Performance Sport
ATV
|
Suzuki LTR
450 ATV Engine
|
- Four-stroke, single cylinder,
fuel injected, liquid cooled, DOHC. Four valve
engine designed to be compact, lightweight
and provide incredible performance
- Innovative Suzuki Advanced
Sump System allows the engine mass and crankshaft
to be positioned close to the ground for a
low center of gravity and also keeping the
engine as short as possible
- Aluminum cylinder bore is
electro-plated with Suzuki's own race proven
SCEM (SuzukiComposite
Electrochemical Material for improved heat
transfer, lightweight and tighter piston clearance
- Lightweight magnesium clutch
cover, magneto cover, and cylinder head cover
for minimal weight and maximum durability
- Lightweight and durable titanium
valves are used for precise valve control
at high rpm and reduced reciprocating mass.
Titanium intake valves measure 36mm and 29mm
on the exhaust
- Lightweight forged aluminum
pistons use a new 3 ring design with cutaway
sides, oil retaining grooves for reduced friction
and the oil control ring features a high performance
chrome nitride plating for less friction and
improved strength
- Five speed transmission is
exceptionally compact with larger 1st and
2nd gears mounted outboard while the 3rd,
4th and 5th gears are mounted inside for a
compact engine layout and superb handling
- The LT-R450 utilizes a convenient
electric starter for easier starts
- A high capacity radiator
is used to handle the high performance engine
output combined with a compact and lightweight,
ring type cooling fan for maximum effeciency
- High performance cylinder
head features a narrow included valve angle
creating a compact cylinder head design, compact
combustion chamber and featuring 12.0:1 compression
ratio for maximum performance
- Advanced and lightweight
electronic fuel injection system with a 42mm
bore and multi hole type injector for optimum
atomization, smooth throttle response and
maximum performance
- High peformance ECM utilizes
a high spec 16 bit CPU for quick fuel injection
calculations and is designed to compact and
lightweight
- Stainless steel center exhaust
system utilizes a compact centrally located
muffler layout for improved mass centralization,
improved stability, and higher cornering performance
|
Suzuki LTR
450 ATV Chassis/Suspension
|
- High-tensile steel frame
designed for optimum rigidity, maximum durability
and features a compact and lower profile for
a lower center of gravity and unmatched cornering
performance
- Race-ready steel rear swingarm
providing more flexibility and a smoother
arc of movement for optimum handling perfomance
in any environment
- Incredibly wide independent
double wishbone front suspension with fully
adjustableKayaba piggyback
reservoir style front shocks featuring 40mm
pistons and a sturdy 14mm shock rod for superb
damping and incredible performance
- Kayaba rear shock features
adustable high and low speed compression,
rebound and preload with a 50mm piston, 18mm
rod and piggyback reservoir design providing
290mm of rear wheel travel
- Special Dunlop radial tires
designed specifically for the LT-R450 combined
with smaller 10 x 5.5 inch aluminum rear wheels
and 18 x 10 inch aluminum front wheels for
a lower center of gravity and superb cornering
stability
- High peformance dual hydraulic
front disc brakes with 160mm front rotors
and a single hydraulic rear brake caliper
mounted on a forged aluminum mounting bracket
and a 190mm rear disc
- Rugged Serrated large footpegs
provide excellent grip and control
- Aggressive styling highlights
the high performance nature of the QuadRacer
R450. The LT-R450 is styled with a low and
wide profile to further emphasize the lightweight
performance intent of the machine
- The LT-R450 has a GSX-R and
Hayabusa inspired multi-reflector headlight
that is easily removable with a single bolt
and an ultra compact LED tailight at the rear
- Aggressively styled radiator
shrouds, front and rear fenders, and T-shaped
seat provide a sharp new look and maximum
rider mobility for the control
|
