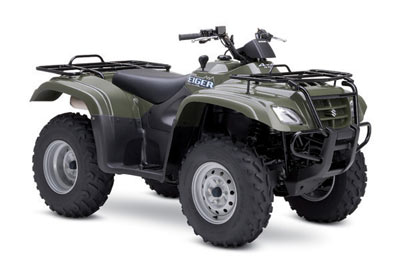

2007 Suzuki Eiger 400 4x4 Utility
Auto ATV Specifications
Suzuki
Eiger 400 ATV Specifications:
|
| Engine: |
376cc,
SOHC, four-stroke, single cylinder, air/oil-cooled |
| Bore Stroke: |
82.0 x 71.2mm |
| Compression
Ratio: |
9.0:1 |
| Fuel System: |
KeihinT CVK32 |
| Lubrication: |
Wet sump |
| Ignition: |
CDI |
| Transmission: |
V-belt CVT automatic
with high/low range sub-transmission, 2WD/4WD front
differential |
| Final
Drive: |
Shaft drive |
| Overall
Length: |
2175mm (85.6 in.) |
| Overall
Width: |
1145mm (45.1 in.) |
| Overall
Height: |
1200mm (47.2 in.) |
| Seat Height: |
830mm (32.7 in.) |
| Ground
Clearance: |
235mm (9.3 in.) |
| Wheelbase: |
1270mm ( 50.0 in.) |
| Dry Weight: |
268kg (590 lbs.) |
| Suspension
Front: |
Independent, double
A-arm, oil-damped |
| Suspension
Rear: |
Swingarm-type, oil-damped |
| Brakes
Front: |
Dual hydraulic discs |
| Brakes
Rear: |
Single mechanical
drum |
| Tires
Front: |
AT 25 x 8-12 |
| Tires
Rear: |
AT 25 x 10-12 |
| Fuel Tank
Capacity: |
15.0 liter (4.0 gallon) |
| Color: |
Red, Green, Black |
www.SuzukiCycles.com
|
|
|
|
|
|
|
