2014

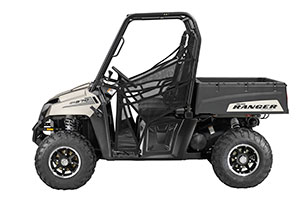

Polaris Ranger 570 EFI
UTV - Specifications
|
| Engine
Type |
4-Stroke
Single Cylinder |
| Displacement |
567cc |
| Fuel
System |
Electronic
Fuel Injection |
| Cooling |
Liquid |
| Transmission/Final
Drive |
Automatic
PVT H/L/N/R/P; Shaft |
| Drive
System |
On-Demand
True AWD/2WD/
VersaTrac Turf Mode |
Engine Braking System/
Active Descent Control |
Not
Equipped |
| Front
Suspension |
MacPherson
Strut 8"
(20.3 cm) Travel |
| Rear
Suspension |
Dual
A-Arm, IRS 9"
(22.9 cm) Travel |
| Front/Rear
Brakes |
4-Wheel
Hydraulic Disc with Dual-Bore
Front Calipers |
| Parking
Brake |
Park
In-Transmission |
| Front
Tires |
25
x 10-12; 489 |
| Rear
Tires |
25
x 11-12; 489 |
| Wheels |
Stamped
Steel |
| Wheelbase |
73 in. (185.4 cm) |
| Dry
Weight |
1,046lb (474kg) |
Overall Vehicle Size
(L x W x H) |
108 x 60.0 x 73 in.
(274 x 152 x 185 cm) |
| Ground
Clearance |
10"
(25.4 cm) |
| Seat
Height |
N.A. |
| Fuel
Capacity |
9
gal (34.1 L) |
Bed Box Dimensions
(L x W x H) |
32
x 42 x 11.5"
(81 x 107 x 29 cm) |
| Front/Rear
Rack Box Capacity |
N.A./500
lb (226.8 kg) |
| Payload
Capacity |
1,000 lbs (453.6 kg) |
| Hitch
Towing Rating |
1,250
lb (567 kg) |
| Unbraked
Trailer Towing Capacity |
N.A. |
| Hitch/Type |
Standard/2"
Receiver |
| Cargo
System |
Lock
& Ride |
| Lighting |
50W
Headlight, LED Tail |
| Electronic Power Steering |
Equipped on Premium
Paint LE |
| Instrumentation |
Digital
Gauge, Speedometer, Odometer,
Tachometer, tripmeter, Hour meter,
Gear Indicator, DC Outlet, Hi-Temp
Light |
| Colors |
Solar
Red, Sage Green, Pursuit Camo, Gold Mist LE |
