2013 Polaris RANGER CREW 800 EFI UTV / SxS Model Info

NAVIGATION
Introduction | Specifications

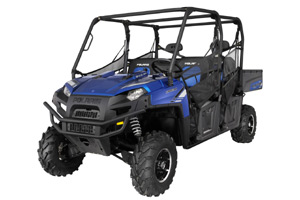

2013 Polaris RANGER CREW 800 EFI UTV / SxS
2013 Polaris RANGER 500 EFI Crew UTV / SxS
2013 Polaris Ranger 800EFI Crew UTV / SxS - Blue Fire LE EPS

2013 Polaris Ranger 800 Crew EFI UTV - Specifications
Engine Type 4-Stroke Twin Cylinder
Displacement 760cc - 40hp
Fuel System Electronic Fuel Injection
Cooling Liquid
Transmission/Final Drive Automatic PVT H/L/N/R; Shaft
Drive System On-Demand True AWD/2WD/
VersaTrac Turf Mode
Engine Braking System/
Active Descent Control
Not Equipped
Front Suspension Dual A-Arm 9.6"
(24.4 cm) Travel
Rear Suspension Dual A-Arm, IRS 9"
(22.9 cm) Travel
Front/Rear Brakes 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake Hand-Actuated
Front Tires 26 x 9-12; PXT
Rear Tires 26 x 11-12; PXT
Wheels Stamped Steel
Wheelbase 108" (274.3 cm)
Dry Weight 1,495 lb (678 kg)
Overall Vehicle Size
(L x W x H)
145 x 60 x 76"
(368 x 152 x  193 cm)
Ground Clearance 11.5" (29 cm)
Seat Height N.A.
Fuel Capacity 9 gal (34.1 L)
Bed Box Dimensions
(L x W x H)
36.5 x 54 x 11.5"
(93 x 137 x 29 cm)
Front/Rear Rack Box Capacity N.A./1,000 lb (453.6 kg)
Payload Capacity 1,750 lb (793.8 kg)
Hitch Towing Rating 2,000 lb (907.2 kg)
Unbraked Trailer Towing Capacity N.A.
Hitch/Type Standard/2" Receiver
Cargo System Lock & Ride
Lighting 55W low/ 60W high
 Electronic Power Steering Not Equipped
Instrumentation Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlets (3)
Colors Available in Sage Green, Solar Red and Pursuit Camo with EPS, Blue Fire with EPS Limited Edition model
