2011 Polaris RANGER RZR 4 800 LE UTV / SxS

2011 Polaris Ranger RZR 4 800 EFI UTV/SxS - Available in Black & Red & a Sonic Blue / White Robby Gordon Edition with EPS Power Steering

2011 Polaris Ranger RZR 4 800 LE Key Features - New Features!

NEW! Aggressive new front styling that increases airflow by 29%
NEW! Engine Management System for better driveability and a 30% improvement in range
NEW! In-cab glove box
NEW! Easier-to-use side nets
800 Polaris H.O. EFI engine
60 inches wide with 12 in/30.5 cm of long-travel suspension and 12.5 in/ 31.8 cm of ground clearance
Lighter than many 2-passenger vehicles at 1,255 lbs/569.3 kg.

Chrome-Moly upper front A-arms for precision and strength.Adjustable Fox® performance shocks with Podium reservoirs
Lowest center of gravity in its class for ground-hugging performance
Independent rear suspension
On-demand, true AWD
Fender Flairs
ROPS Certified Cab
Seating for four
Available in two Robby Gordon editions: a Black and Red edition and a Power Steering version with Robby Gordon inspired graphics.

2011 Polaris RANGER RZR4 800 Limited Edition UTV / SxS

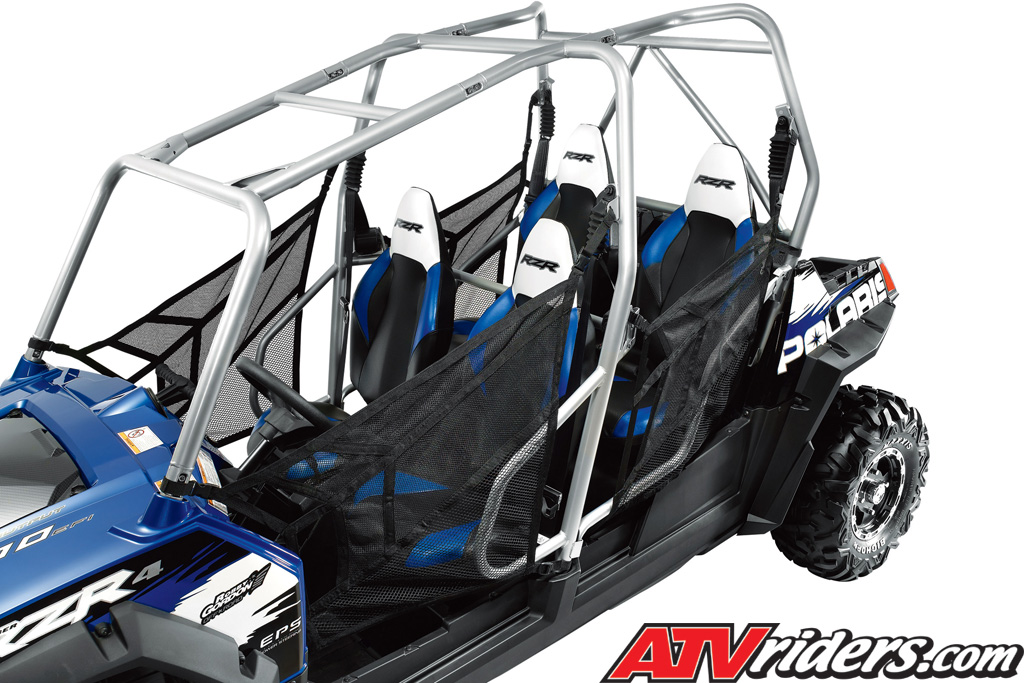

2011 Polaris Ranger RZR 4 800 EFI UTV / SxS - Available in Black & Red & a Sonic Blue / White Robby Gordon Edition with EPS Power Steering

2011 Polaris RANGER RZR4 800 LE EFI UTV / SxS Specifications
Engine Type	4-Stroke Twin Cylinder
Displacement	760cc High Output (H.O.)
Fuel System	Electronic Fuel Injection
Cooling	Liquid
Transmission/Final Drive	Automatic PVT P/R/N/L/H; Shaft
Drive System	On-Demand True AWD/2WD
Engine Braking System/ Active Descent Control	Not Equipped
Front Suspension	Dual A-Arm 12" (30.5 cm) Travel
Rear Suspension	Dual A-Arm, Rolled with Anti-Sway Bar 12" (30.5 cm) Travel
Front/Rear Brakes	4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake	Park in Transmission
Front Tires	26 x 9-12; Maxxis Bighorn
Rear Tires	26 x 12-12; Maxxis Bighorn
Wheels	Cast Aluminum
Wheelbase	103.0" (261.6 cm)
Dry Weight	1,255 lbs. (569.3 kg)
Overall Vehicle Size (L x W x H)	130 x 60 x 75" (330.2 x 152.4 x 190.5 cm)
Ground Clearance	11.5" (29.2 cm)
Seat Height	N.A.
Fuel Capacity	7.25 gal (27.4 L)
Bed Box Dimensions (L x W x H)	22 x 42 x 6.5" (56 x 107 x 16.5 cm)
Front/Rear Rack Box Capacity	N.A./300 lb (136.1 kg)
Payload Capacity	900 lb (408.2 kg)
Hitch Towing Rating	1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity	N.A.
Hitch/Type	Standard/1.25" Receiver
Cargo System	Lock & Ride
Lighting	55W low/ 60W high
Electronic Power Steering	Equipped
Instrumentation	Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlets (2)
Colors	Blue/White Robbie Gordon Edition
