2009 Polaris Sportsman 800 6x6 Big Boss Utility ATV Specifications

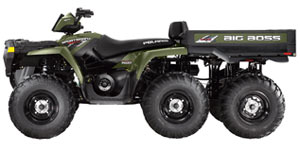

2009 Polaris Sportsman 800 6x6 Big Boss Utility ATV
Engine
Engine Type	4-stroke
Displacement, cc	760
Carburetion	40mm Throttle Body, EFI
Cooling	Liquid
Starting	Electric
Drive Train
Final Drive	Shaft
Transmission	P/R/N/L/H
Drive System	Shaft
Engine Braking System	Standard
Active Decent Control	Standard
Suspension
Front Suspension	MacPherson Strut with 8.2" / 20.8 cm travel
Rear Suspension	Mid: Fully Independent with 6.12" / 15.5 cm travel Rear: Fully Independent with anit-roll bar; 6.12" / 15.5 cm travel
Brakes
Front Brakes	Single Lever Hydraulic disc
Rear Brake	Single Lever Hydraulic disc
Tires & Wheels
Front Tires	25x8-12
Rear Tires	25x11-12
Wheels	Stamped Steel
Dimensions/Capacities
Wheelbase	79.5" / 201.9 cm
Dry Weight	1060 lb. / 480.8 kg
Length/Width/Height	112" / 284.5 cm, 48" / 121.9 cm, 48"/ 121.9 cm
Seat Height	34" / 86.4 cm
Fuel Capacity	4.1 gal. / 15.5 ltr
Front Rack/Box Capacity	100 lb / 45.4 kg
Rear Rack Capacity	800 lb / 362.8 kg
Hitch Towing Capacity	1500 lb / 680.4 kg
Ground Clearance	10.5 in / 26.7 cm
Hitch / Type	Std / Receiver
Instrumentation/Features
Instrumentation	Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hourmeter, Clock, Gear Indicator, Fuel Gauge, Hi Temp/Low Batt lights, DC Outlet.
Colors
	Sage Green
MSRP
	N/A
