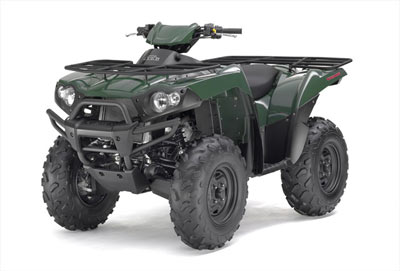

Brute
Force 650 4x4i Specifications
|
| Engine |
Four-stroke, V-twin, liquid-cooled,
SOHC, four-valve |
|
| |
| Bore x stroke |
80.0 x 63.0mm |
|
| |
| Carburetor |
Keihin CVKR-34 x 2 |
|
| Transmission / drive system |
KAPS, Dual Range with Reverse,
2WD/4WD, shaft |
|
| |
| |
| |
| Minimum turning radius |
10.8 ft. |
|
| Brakes, front |
Hydraulic discs |
|
| Brakes, rear |
Sealed multi-disc |
|
| Suspension, front |
Dual A-Arms, two shocks with
five-way preload adjustment |
|
| Suspension, rear |
Dual A-Arms, two shocks with
five-way preload adjustment |
|
| Wheel travel, front |
6.7 in. |
|
| Wheel travel, rear |
7.9 in. |
|
| Ground clearance |
10.1 in. |
|
| |
| Track front/rear |
36.2 in. / 35.2 in. |
|
| Length x width x height |
86.4 x 46.3 x 48.4 in. |
|
| |
| Rack capacity, front/rear |
88 lbs. / 176 lbs. |
|
| Towing capacity |
1,250 lbs. |
|
| Tongue weight capacity |
88 lbs. |
|
| |
| Color choices |
Woodsman Green, Aztec Red, Galaxy
Silver, Super Black or REALTREE Hardwoods
Green® HD™ |
|
| Good Times™ Protection Plan |
12, 24, 36 or 48 months |
|
| |
| |
