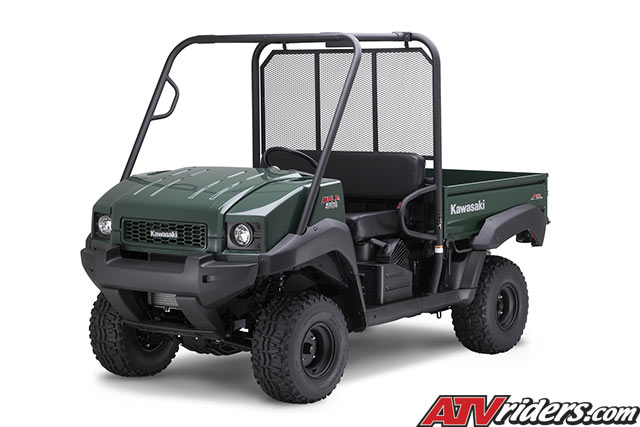

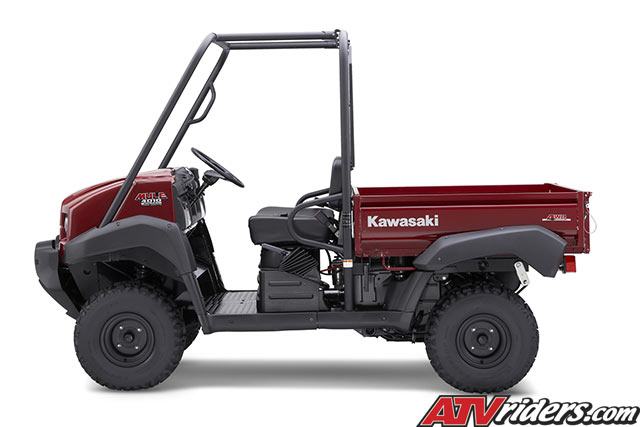

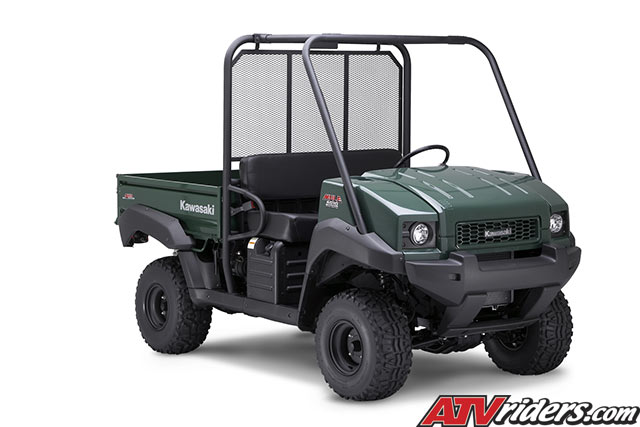

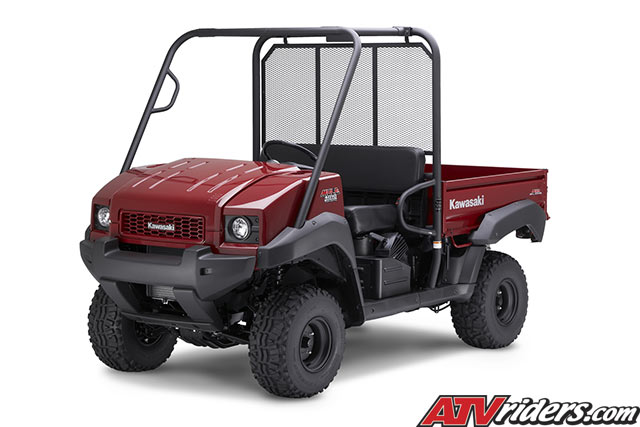

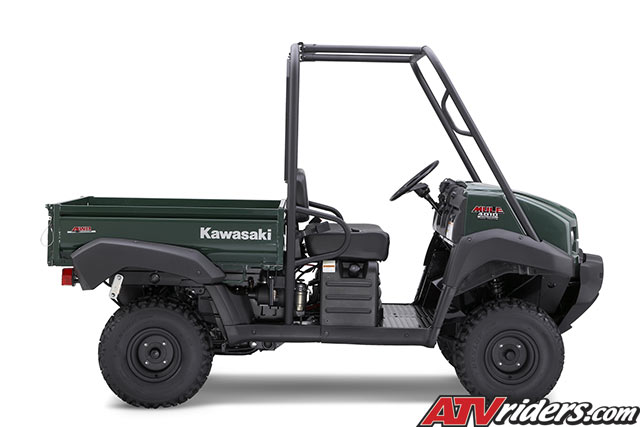

Already a proven performer with its reliable and robust diesel engine, automatic transmission, tilting cargo bed, and selectable four-wheel drive, the Kawasaki Mule™ 4010 4x4 Diesel utility vehicle now mates its muscular yet agile workhorse capabilities with an all-new rugged appearance. The truck-like look of this off-road performer belies the ease of handling made possible by its electric power steering (EPS).

The EPS offers a more controlled ride by reducing steering effort at low speeds and harnessing its electric motor’s inertia to dampen much of the bump steer and kickback caused by impacts to the wheel. Electrically driven, the motor is controlled by an Electronic Control Unit (ECU) that uses input from a vehicle speed sensor and torque sensor to determine the amount of assistance provided by the system. This system works immediately after the engine is started, yet doesn’t create a power drain on the engine.

The new bodywork on the Mule 4010 4x4 Diesel utility vehicle is similar in style to many modern pick-up trucks that are often working alongside the Mule. The body panels are durable, color-molded plastic that helps hide scuffing. The front hood of the Mule 4010 Diesel can be lifted with the pull of a dash-mounted knob to reveal a now deeper storage space, which also has convenient D-rings to secure cargo. Located beneath the front bumper are winch-ready tabs for an easy winch installation.

At the core of the Mule 4010 4x4 Diesel is its liquid-cooled, 953cc three-cylinder diesel engine that produces high torque at low engine rpm. The diesel engine is matched to the Kawasaki Automatic Power-Drive System (KAPS). It’s a continuously variable transmission (CVT) that features a high and low range, reverse, and helps keep engine rpm in the most efficient range for any selected vehicle speed, load, or terrain. It yields a wide drive ratio spread for ample pulling power and quick acceleration. Large torque converters maximize belt engagement area and improve heat dissipation, boost strength and durability, and are aided by the use of a thick, strong drive belt and sheaves with high silicon-type material.
The KAPS also features a high-flow cover helping to cool the CVT while providing superb splash protection and water-proofing. This reliable system uses a dependable, low-maintenance shaft drive to transmit power to a dual-mode rear differential that can be locked to maximize traction, or unlocked to minimize ground disturbance when making tight turns. The operator can also select four-wheel drive for extra pulling power in difficult conditions.

Wear is further reduced by cooling the torque converter with filtered air, courtesy of a special air cleaner that uses an easily replaceable filter element and an efficient intake cooling fan to draw sufficient air into the CVT.
