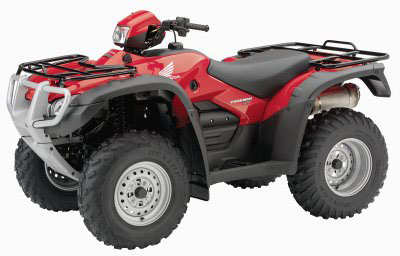

| Model:
|
TRX500FPE (with
EPS) / TRX500FPM |
| Engine
Type: |
475cc air-cooled
OHV longitudinally mounted
single-cylinder four-stroke |
| Bore
and Stroke: |
92mm x
71.5mm |
| Compression
Ratio: |
8.5:1 |
| Carburetion: |
36mm constant-velocity |
| Ignition: |
CD with
electronic advance |
| Starter: |
Electric
with auxiliary recoil |
| Clutch: |
Automatic |
| Transmission: |
ESP five-speed
with Reverse |
| Driveline: |
Direct
front and rear driveshafts
with Traxlok and torque-sensitive
front differential |
| Suspension |
Front:
Independent double-wishbone;
6.7 inches travel
Rear: Swingarm with dual shocks;
6.7 inches travel |
| Brakes |
Front:
Dual hydraulic 180mm disc
Rear: Sealed 180mm mechanical
drum |
| Tires |
Front:
25x8-12
Rear: 25x10-12 |
| Length: |
83.0 inches |
| Width: |
46.8 inches |
| Height: |
46.5 inches |
| Seat
Height: |
33.9 inches |
| Ground
Clearance: |
7.5 inches |
| Wheelbase: |
50.7 inches |
| Turning
Radius: |
10.8 feet |
| Dry
Weight: |
600 pounds |
| Fuel
Capacity: |
4.1 gallons,
including 0.7-gallon reserve |
| Color: |
Red, White,
Olive, NaturalGear Camouflage |
| Recommended
for riders 16 or older |
