| Model:
|

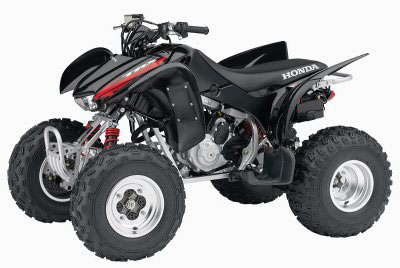

TRX300EX |
| Engine
Type: |
282cc air-cooled
SOHC single-cylinder four-stroke |
| Bore
and Stroke: |
74mm x 65.5mm |
| Carburetion:
|
32mm piston-valve
with accelerator pump |
| Ignition:
|
CD with electronic
advance |
| Starter:
|
Electric |
| Clutch:
|
Manual |
| Transmission:
|
Five-speed
with Reverse |
| Driveline:
|
O-ring-sealed
chain |
| Suspension |
Front: Independent
double-wishbone with dual
hydraulic shocks; five-position
spring preload adjustability;
7.1 inches travel
Rear: Swingarm with single
shock; five-position spring
preload adjustability; 7.9
inches travel |
| Brakes |
Front: Dual
hydraulic disc
Rear: Single hydraulic disc |
| Tires |
Front: 22
x 7-10 knobby
Rear: 22 x 10-9 knobby |
| Length:
|
67.7 inches |
| Width:
|
43.5 inches |
| Height:
|
41.8 inches |
| Seat
Height: |
30.5 inches |
| Ground
Clearance: |
4.6 inches |
| Wheelbase:
|
45 inches |
| Turning
Radius: |
10.2 feet |
| Dry
Weight: |
372.5 pounds |
| Fuel
Capacity: |
2.2 gallons,
including 0.5-gallon reserve |
| Colors:
|
Red, Black |
| For
highly experienced riders
16 years of age and older. |
