| Model: |

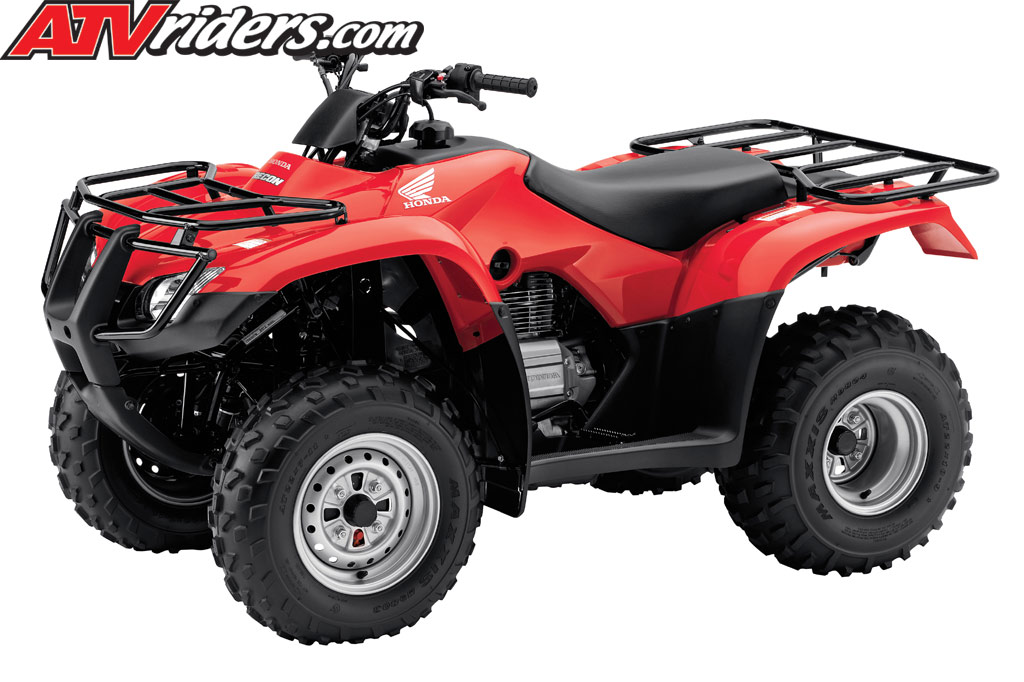

TRX250TE (with ESP) / TRX250TM |
| Engine Type: |
229cc air-cooled OHV longitudinally
mounted single-cylinder four-stroke |
| Bore and Stroke: |
68.5mm x 62.2mm |
| Induction: |
22mm carburetor |
| Ignition: |
CD with electronic advance |
| Starter: |
Electric with auxiliary recoil |
| Clutch: |
Automatic |
| Transmission: |
ESP five-speed with Reverse |
| Driveline: |
Direct rear driveshaft |
| Suspension: |
Front: Independent double-wishbone;
5.1 inches travel
Rear: Swingarm with single shock; 4.9 inches
travel |
| Brakes: |
Front: Dual sealed hydraulic
drum
Rear: Sealed mechanical drum |
| Tires: |
Front: 22 x 7-11
Rear: 22 x 10-9 |
| Length: |
75.0 inches |
| Width: |
40.7 inches |
| Height: |
42.1 inches |
| Seat Height: |
31.2 inches |
| Ground Clearance: |
6.0 inches |
| Wheelbase: |
44.5 inches |
| Turning Radius: |
8.5 feet |
| Fuel Capacity: |
2.4 gallons, including 0.6-gallon
reserve |
| Colors: |
Red, Olive Green |
| Curb Weight*: |
439 pounds (TRX250TE) / 432
pounds (TRX250TM) |
| *Includes
all standard equipment, required fluids
and full tank of fuel--ready to ride.
|
