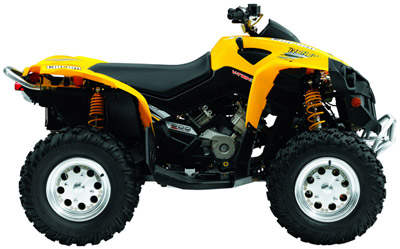

2008 Can-Am Renegade 800 H.O. EFI 4x4 Sport-Utility ATV

Renegade 800 H.O. Sport-Utility ATV Specifications:

ENGINE
Type	800cc, 4-stroke, V-twin, liquid-cooled, 8-valve SOHC
Bore & Stroke	91 x 62 mm
Torque	73 Nm @ 5,500 RPM
Fuel Delivery	EFI, 46mm Throttle Body, 2 Siemens‡ VDO injectors
Starting System	Electric
Transmission	CVT, sub-transmission with high, low, park, neutral & reverse
Drive Train	Selectable 2x4/4x4 shaft driven with Visco-Lok† front differential
CHASSIS
Frame	SST
Front Suspension Type	RS-Type double A-arm, Forged Aluminum upper arm, Bilstein HPG
Travel	8.5 in (216 mm)
Rear Suspension Type	RS-Type TTI independent, Bilstein HPG
Travel	9 in (228.6 mm)
Front Brake	2 hydraulic discs
Rear Brake	1 inboard hydraulic disc
Tires /Front	ITP Holeshot ATR 25 x 8 x 12 in
Tires /Rear	ITP Holeshot ATR 25 x 10 x 12 in
Wheels	Center-cast aluminum
DIMENSIONS
L x W x H	86 x 46 x 45 in (2,184 x 1,168 x 1,143 mm)
Wheelbase	51 in (1,295 mm)
Dry Weight	607 lbs ( 275 kg)
Ground Clearance	12 in (305 mm)
Seat Height	34.5 in (877 mm)
Rack Capacity	Rear: 35 lbs (16 kg)
Towing Capacity	1,300 lbs (590 kg)
Fuel Capacity	5.3 US gal (20L)
FEATURES
Instrumentation	Multi-function gauge: Speedometer, tachometer, odometer, trip and hourmeter, fuel, gear position, 4x4 indicator, diagnostics, auto shut off
Anti-theft	D.E.S.S. (digital encoded security system)
Storage	Rear storage 1 US gal (3.7L)
Electrical	Prewired for winch
Lighting	4 fender mounted Projector Beam headlamps (60W) with tail light / brake light
DC Outlet	Lighter-type in console, Standard connector at the back (15A)
Color	Yellow
