ENGINE |

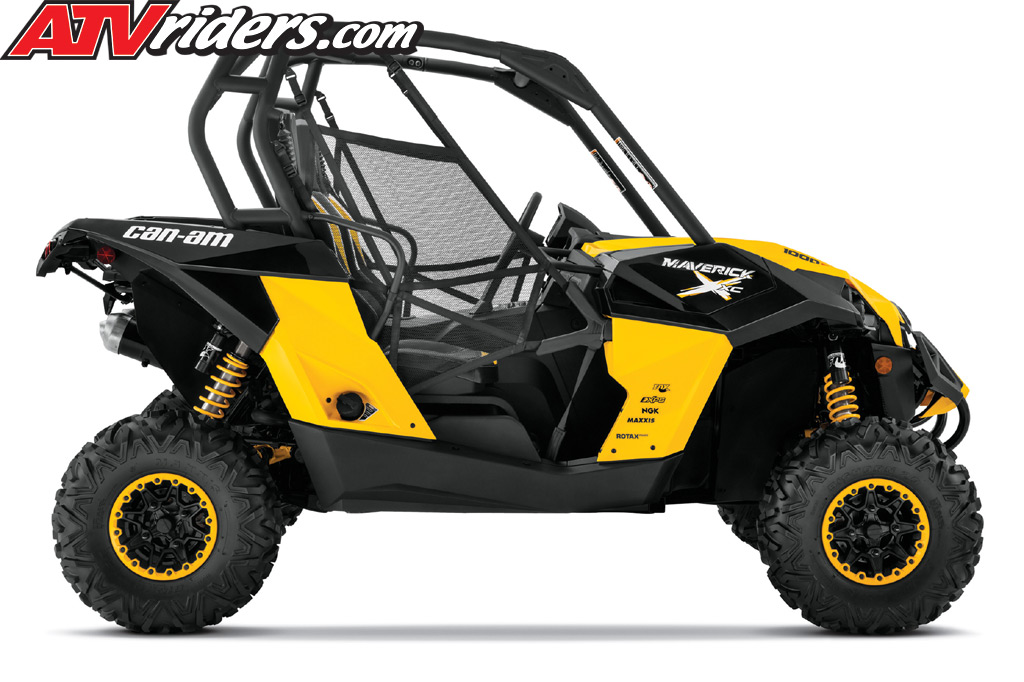

Maverick 1000R X xc EFI 4X4 SxS / UTV
|
| Type |
976cc,
V-twin, liquid-cooled, SOHC,
8-valve (4-valve / cyl) |
| Bore
& Stroke |
91 x 75 mm |
| Fuel
Delivery |
iTC
with EFI, 54 mm Throttle Body,
2 Siemens‡ VDO injectors |
| Starting
System |
Electric |
| Transmission |
CVT,
sub-transmission with high,
low, park, neutral & reverse,
Standard Engine braking |
| Drive
Train |
Selectable
2w/4w shaft driven with Visco-lok
front differential |
CHASSIS |
Frame
|
Steel
|
| Roll
Cage |
2
inch diameter, high strength
steel, ROPS Approved |
| Front
Suspension |
Double
A-arm / FOX PODIUM X Performance 2.0 HPG piggyback shocks with compression and preload adjustments |
| Travel |
14 in (356 mm) |
| Rear
Suspension |
Torsional Trailing A-arms (TTA) independent rear suspension with swaybar / FOX P PODIUM X Performance 2.0 HPG piggyback shocks with compression and preload adjustments |
| Travel |
14 in (356 mm) |
| Front
Brake |
Dual
214mm ventilated disc brakes
with hydraulic twin-piston calipers |
| Rear
Brake |
Single
214mm ventilated disc brake
with hydraulic twin-piston caliper |
| Tires
/Front |
Maxxis Bighorn 2.0 27
x 9 x 12 |
| Tires
/Rear |
Maxxis Bighorn 2.0 27
x 11 x 12 |
| Wheels |
Cast Aluminum |
DIMENSIONS |
| L
x W x H |
118.3
x 64 x 74.2 in / 3,0174 x 1626
x 1885 mm |
Wheelbase
|
84.3
in / 2,141 mm |
| Dry
Weight |
TBD |
| Ground
Clearance |
13
in (330 cm) |
| Rear Rack Capacity |
Total
: 200lbs / 91kg with LinQ quick-atachement system |
| Towing
Capacity |
N/A |
| Fuel
Capacity |
10
US gal (38L) |
| Cockpit
Storage |
Glove
Box: 4.5 gal / 17.2 L - Under
Driver Seat: 3.5 gal / 13.1L |
FEATURES |
| Instrumentation |
Multi-function
guage: Speedometer, tachometer,
odometer, trip/hour, fuel, gearing,
sport mode, seat belt, 4x4,
diagnostics, clock, auto shut-off |
| Interior |
- |
| Anti-theft |
D.E.S.S
Digital Encoded Security System |
| Electrical |
Prewired for winch |
| Lighting |
4
fender mounted 60-watt projector
headlamps with tail light /
brake light |
| DC
Outlet |
- |
| Standard
Colors |
Yellow |
| Price:
|
N/A
|
