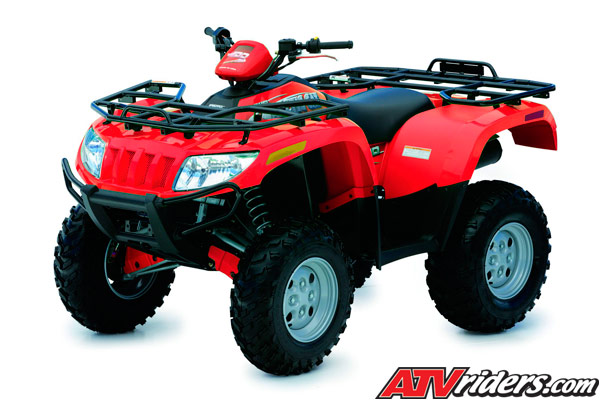

Different
riders have different needs, which is why Arctic
Cat makes a variety of their popular 400 class
4x4’s. Riders who demand the only true
fully independent rear suspension (FIS) can
opt for a 400 4x4 with either the Duramatic
automatic transmission with engine braking,
or with a five-speed, auto-clutch manual transmission
with Hi-Lo range.
Every 2007 FIS model is equipped
with slimline SpeedRacks featuring a contoured
shape and accessory attachment mounts that lower
the height of the rack. The FIS models also
receive a full-lock front differential (with
a convenient handlebar-mounted lever), floating
brake calipers, a redesigned hydraulic foot
brake system with remote fluid reservoir and
a heavy-duty rear axle.
A new digital instrument pod
on the FIS machines has 14 digital indicators
such as speed, odometer, dual trip meters, hour
meter, clock, and fuel level that is enhanced
with bodywork that gives the 400-class the Cat
Family look.
All of the Arctic Cat 400 class
machines are powered by a torquey 376cc, air/oil-cooled
four-stroke engine featuring a temperature-controlled
fan and an Auto Electronic Choke system for
simple “one touch” starting. All
400s have a fully independent, double A-arm
front suspension that eats up gnarly terrain
and, like the rear suspension, features preload-adjustable
shocks.
Other premium features include
a 2-inch “automotive style” receiver
hitch, handlebar-mounted electronic 2WD/4WD
switch for quick shifts, new 25-in. Goodyear
Rawhide RS tires and large 4.75- or 6.5-gallon
fuel tanks. And there is the best-in-class ground
clearance (12 inches on FIS machines), rack
capacity (100 lbs. front/200 lbs. rear) and
suspension travel (10 inches on FIS machines).
Adding convenience to the 400
class machines are features like Start-In-Gear,
zero-maintenance suspension bushings and sealed
drive shafts, a full-length plastic skid plate
that glides over rough terrain and the single-lever,
hand-operated hydraulic disc brakes (front and
rear).
400 Class New Features
All LE models have machined
aluminum wheels, one-piece front brush guard
and rear accessory bumper and a 2500lb. Warn
Winch. 400 LE is available in Red.
The newly developed Goodyear
Rawhide RS is standard on all Arctic Cat ATVs
(25x8-12 front, 25x10-12 rear) for improved
traction, durability and ride handling.
A redesigned handlebar with
improved bend for increased ergonomic comfort
in all riding situations.
Easily removable engine
covers protect riders legs from engine heat
dissipation while diffusing sound, creating
a clean appearance to the engine compartment.
Displays 14 critical operation
information indicators including: clock/hour
meter, fuel level, mode button, set/reset
button, odometer/trip meter, gear position,
speedometer/tachometer, needle display, differential
lock, drive select, high beam, battery condition,
temperature and oil pressure. (LE model also
has Analog Speedometer readout)
4.0 Gears in the front and
rear gearcases help to increase low end torque
Redesigned fenders increase
water and mud protection as well as good looks,
a high-density durable plastic skid plate
doesn’t rip or rust, “Stick Stoppers”
protect CV boots and the 400s are outfitted
with Zero-maintenance suspension bushings,
sealed drive shafts (front and rear), and
constant-velocity (CV) joints
Removal of the panel allows
easy access to the switched accessory plug,
which is conveniently located under the panel
6.5 gallon tank extends
your riding pleasure, while relocated to the
rear of the machine for a lower center of
gravity
Improved seat latch for
easy installation and removal to gain access
to the integrated, organized tool tray underneath
the seat
Operator sound level reduced
Integrated storage box with
at your finger tip access
Enhanced styling and lines
of the bumper compliment the new body styling
Integrated winch mount;
easy winch and winch solenoid installation
in close proximity to each other
Winch wiring installation
time is greatly reduced due to the location
of the winch components
400 Class Engine Info
376cc 4-stroke, single cylinder,
air/oil cooled engine
34mm Keihin carburetor with
electronic automatic choke
Air/Oil-cooling system with
high-capacity oil cooler and thermostatically-controlled
cooling fan provides consistent engine operating
temperatures
Duramatic Automatic Transmission,
with long-life maintenance free belt or choice
of Manual 5-speed with Hi-Lo range
400
Class Chassis/Suspension Info
Arctic Cat ATVs have an
optional sway bar available as an accessory
purchase through your authorized dealer. Similar
to any off-road 4x4 vehicle, eliminating the
sway bar, lets the 10” of front or rear
Fully Independent Suspension articulate through
the full range of suspension travel. This
increased articulation provides full tire
contact in all types of off-camber terrain.
The addition of the sway bar will impact the
traction capabilities; however, it will enhance
flatter cornering in aggressive trail riding
12” of ground clearance
enhances the ability to navigate through mud
or over large rocks, logs, and other objects
encountered in rough terrain
Industry leading weight
capacity and overall cargo carrying surface
area allows 100 lb carrying capacity on the
front rack and 200 lbs. on the rear
Full-lock front differential
transfers engine torque to both front wheels
when selected for added traction with a flip
of the switch. 4x4/2x4 switch is located on
right-side handlebar for quick, convenient
shifting in-and-out of four-wheel drive
Allows very quick installation
and removal of a wide variety of Arctic Cat
exclusive accessories without the need for
tools, bloody knuckles or swearing
SpeedRack and its accessories add value to
the machine and also enhance the efficiency
of your hunting, fishing, farming or utility
chores
This feature allows the
consumer to remove the hitch from their 2”
automotive receiver and install it into the
ATV’s receiver hitch
Low maintenance, positive
stopping power in either dry or wet conditions
Set the spring preload (5
rear positions, 5 front positions) on the
shocks to tailor the ride to individual riding
styles, terrains and loads
400
Class Key Features
Fully Independent Suspension
Adjustable preload shocks
12 inches industry leading
ground clearance
10 inches front and rear
suspension travel
SpeedRacks are standard
Fully automatic transmission
or Manual 5-speed w/ Hi-Lo range
Reliable 4-stroke engine
On-the-fly electric shift
2- to 4-wheel drive with front locking differential
