2009 Arctic Cat 700 H1 EFI
MudPro Utility ATV Info - Continued
Power Has
Never Been Such a Dirty Word!
Arctic
Cat 700 H1 Mud Pro ATV Engine:
|
- 695cc, EFI, SOHC 4-stroke,
4-valve, single-cylinder, liquid cooled
engine
- The “H”
in H1 stands for Hemi. The hemispherical-shaped
head creates more complete, more efficient
combustion for performance-winning power
- An Arctic Cat produced
performance engine built in the state-of-the-art
St. Cloud manufacturing facility
- The potent H1 motor
has led Team Arctic racers to two consecutive
championships in the World Powersports
Association (WPSA) Quad Terrain races.
- Electronic Fuel Injection
aids in perfect starting no matter what
altitude or temperature changes.
- Liquid cooling system
with high-capacity radiator and thermostatically-controlled
cooling fan provides consistent engine
operating temperatures
- The Duramatic Automatic
Transmission has a long-life maintenance-free
belt that withstands the harshest of conditions.
|
Arctic
Cat 700 H1 MudPro ATV Chassis/Suspension:
|
- Machined Aluminum
Wheels - All new 12” machined
aluminum wheel design has an optimized
scrub radius minimizing the rider steering
effort.
- Positive Shifting
- A new shift detent profile
in the lever linkage allows for improved
positive shifting
- Thundercat Halfshafts
- Developed from the Quad Terrain
Race circuit, all-new halfshafts (axles)
were adopted from the Thundercat to increase
durability and strength for the most brutal
offroad conditions.
- New Headlight
Bulb Sockets - The right-hand
headlight bulb sockets have been redesigned
to eliminate the bulb popping out, decreasing
the chance of the headlight housing filling
with moisture.
- Fully Independent
Suspension (FIS) How it works with or
without a swaybar - Arctic Cat
ATVs have an optional sway bar available
as an accessory purchase through your
authorized dealer. Similar to any off-road
4x4 vehicle, eliminating the sway bar,
lets the 10” of front or rear Fully
Independent Suspension articulate through
the full range of suspension travel. This
increased articulation provides full tire
contact in all types of off-camber terrain.
The addition of the sway bar will impact
the traction capabilities; however, it
will enhance flatter cornering in aggressive
trail riding
|
|

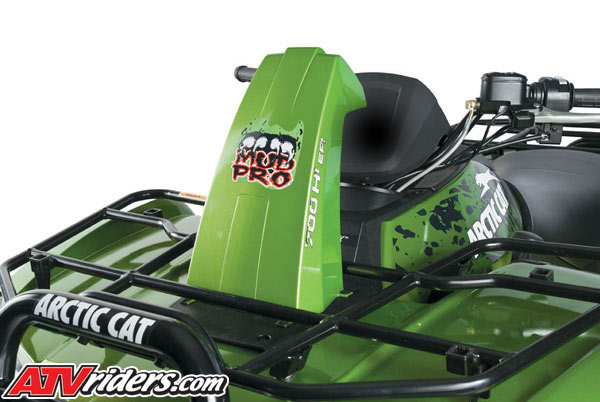

Arctic
Cat 700 H1 Mud Pro ATV Snorkle
|
- Industry Leading
Ground Clearance - 14”
of ground clearance enhances the ability
to navigate through mud or over large
rocks, logs, and other objects encountered
in rough terrain
- Large Capacity
SpeedRacks - Industry leading
weight capacity and overall cargo carrying
surface area allows 100 lb carrying capacity
on the front rack and 200 lbs. on the
rear
- SpeedRack Technology:
• Allows very quick installation
and removal of a wide variety of Arctic
Cat exclusive accessories without the
need for tools, bloody knuckles or swearing
• SpeedRack and its accessories
add value to the machine and also enhance
the efficiency of your hunting, fishing,
farming or utility chores
- 2-Inch Automotive
Style Receiver Hitch - This feature
allows the consumer to remove the hitch
from their 2” automotive receiver
and install it into the ATV’s receiver
hitch
- Floating Hydraulic
Disc Brakes - Low maintenance,
positive stopping power in either dry
or wet conditions
- Adjustable Shocks
- Set the spring preload (5 rear
positions, 5 front positions) on the shocks
to tailor the ride to individual riding
styles, terrains and loads
- Electric Shift
2-to 4-Wheel Drive with new Electric Front
Locking Differential - Full lock
front differential transfers engine torque
to both front wheels when selected for
added traction with an all-new electronic
rocker switch located on the gauge pod
while 4wd/2wd switch is located on right-side
handlebar for quick, convenient shifting
in-and-out of four-wheel drive.
|
Additional
700 H1 MudPro ATV Features:
|
-
|

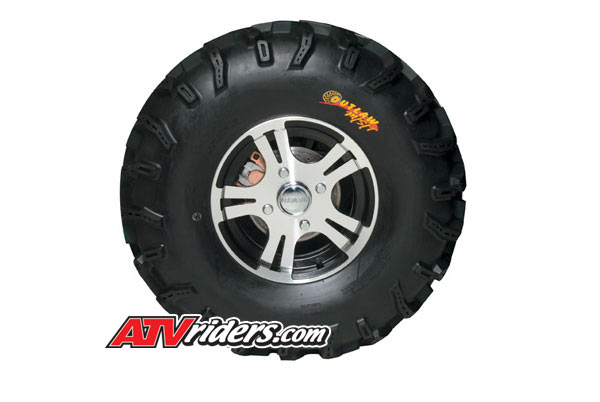

Highlifter's
Outlaw MST Tire
|
Tires:
• The Outlaw MST is specially
designed for riders who play in the mud
but may not spend all their time there.
28-9.5x12(front) and 28-12x12(rear) offers
the ultimate in all-around performance.
• With deep lugs, wraparound tread
bars, and side sipes seen on tires designed
for snow and ice, they offer the maximum
in all around traction while delivering
a smooth ride on hard pack.
- M: Mud -
The Outlaw MST is fully capable of handling
the deepest mud holes. With one-inch tread
depth across the face and shoulder, the
MST is an excellent mud tire for the majority
of mud riders.
- S: Snow -
The Outlaw MST is designed for traction
in the snow. With significant sidewall
wrap, the MST is excellent for grabbing
snow and ice and plowing through even
the deepest snow covered terrain.
- T: Trail -
The Outlaw MST is designed for a smooth
ride on the trails. With a flattened tread
profile with multiple sipes that create
traction on both hard-pack and slick surfaces,
the MST delivers a smoother, easier handling
ride than most deep lug tires.
- Color Options
- Competition Green Metallic
|
