HCR King of the Hammers RZR
Race Ready Package

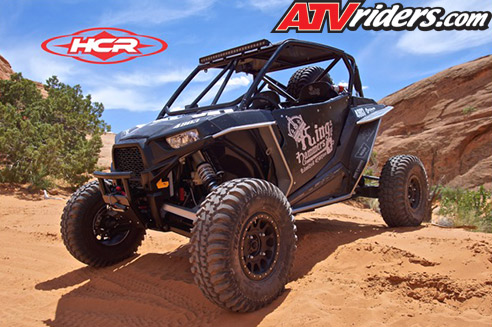

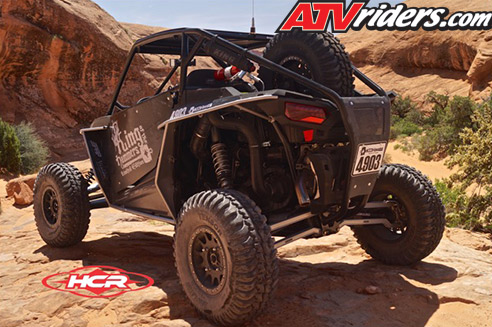

HCR KOH Polaris RZR XP 1000
Cedar City, UT (5/19/2015) - Race KOH like never before. HCR has teamed up with Dave Cole of King of the Hammers to provide the best racing experience yet. A turn key, tech-ready Race UTV available from HCR direct or your local Powersports dealership.
 |
|
HCR has teamed up with King of
Hammers to feature a Polaris RZR XP 1000
race package |
This limited edition package includes Race entry , tech package, and $10,000 in additional contingency purse money specifically for 4900 race cars. This additional contingency will be supplied by HCR.
 |
The
HCR race package includes all you need to
finish the challenging King of the Hammers
|
Package Features:
| COMMUNICATION |
- PCI 50w Race Package with Kenwood TK-7360 50 watt Radio.
- Antenna and Coax is included with the kit as well as Radio and intercom bracket.
- Lawrace Elite 5m Baja HD GPS System
- Custom XP1000 Elite 5 GPS Bracket
|
| SAFETY |
- Custom SDR K.O.H. Race Legal Cage
- 6 Point DOM
- 1/8” aluminum roof
- rear bumper incorporated into the cage
- opening full doors
- Custom PRP GT Race Seats
- custom numbered & Embroidery
- PRP nets & 5 point harnesses
|
| VISION X |
- Custom KOH UTV light
- 30” low profile light bar
- 528 Raw Lumens per LED
- 5 watt LED’s
- Integrated Thermal Management
|
| METHOD RACE WHEELS |
- 401 14” Beadlock
- Forged 6061 beadlock ring
- Grade 8 Zinc Plated Mounting Hardware
- Load rading of 1600 pounds
- Offered in matte black or machined
|
| TENSOR REGULATOR |
- 8 ply construction
- DOT approved
- variable tread pattern for optimal performance
- 30x10R14
|
| STRENGTH |
- Warn Provantage 4500 winch
- 55’ of 7/32” rope
- All mounting hardware included
- 4,500 Lb. Capacity
|
| HCR RACING FENDER FLARES |
- Steel construction with DOM tubing
- Integrated rocker assemblies
- Increased strength, durability & design
- Only available through HCR
|
| AXIA BILLET ACCCESORIES |
- Billet rear view mirror
- 2.5 lb fire extinguisher and billet mounts
|
| METAL SEAT BASES |
- Lowers seat 1 - 1.5” while replacing factory plastic seat bases for added strength and safety
|
| GRAPHICS |
- Numbered to match limited edition Unit
- Features race number and custom wrap exclusively for 2016 KOH limited Edition race cars.
|
| TECH & FIRST AID KIT |
- 9” x “9 x 4” Race legal first aid kit
- Amber light
- Reflectors
- Horn
|
| HCR RACING COMPLETE SUSPENSION KIT |
- 21+ Inches of Usable travel
- +4 inches wider/ side creating an additional 8” of track width
- 3” extended wheel base
- Shock tower for better motion ratio
- Weld - on gusset tab kit
- FK Heims and Chromoly components
- High link option standard OR grade 9 race link setup with 5/8 -18 heims
- Spherical setup standard
- Summers Bros +4” extended axle bars manufactured from aerospace rated 4340 Chromoly
- Black oxidized & through hardened
|
| SPARE TIRE MOUNT |
- Vertical spare tire mount
- Steel construction
|
| AMERICAN ROCK RODS H. D. Tie Rods
|
- OEM style inner joint allowing 360° movement
- CNC machined aluminum rod with a central spot for a wrench for toe adjustments
- Aluminum QA1 heim has an 8600 lb ultimate radial static load rating
|
| SKID PLATE |
- 3/8” molded HMW for perfect fit
|
| Suspension |
- Patented Internal Bypass technology
- 2.5 Internal bypass with cast - finned remote standard in rear
- IBP upgrade available for front clickers allowing 30% compression adjustment
- Custom valved, tuned, and designed for KOH cars
|
PACKAGE PRICE $24,900*
*Does not include vehicle
These limited edition platforms will only be sold as a complete package. Custom edition components will not be available through retail or other individual sales outlets. For information on building a turn key car, please contact HCR Racing using the information provided below.
CONTACT INFO
www.hcrracing.com
630 N. 800 W.
Cedar City, UT 84721
Toll Free: 888-928-7223 or 435-865-9280
|
